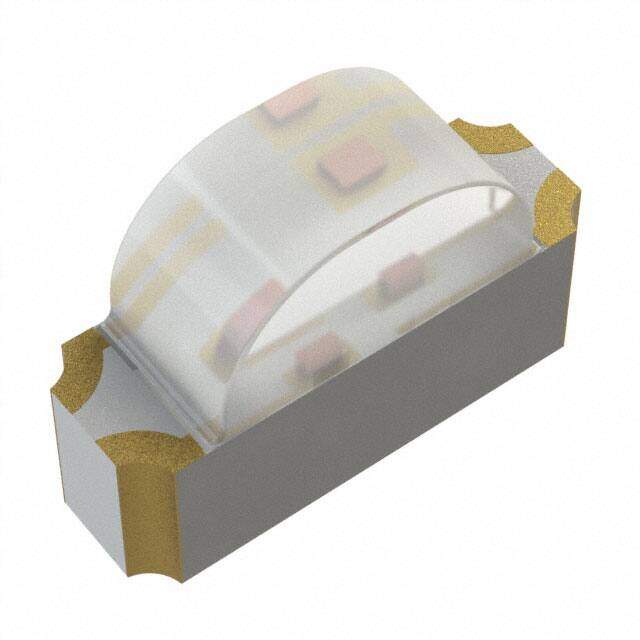

HSMF-C142
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HSMF-C142 LED, Red, Green, SMD, 120 , Dome, R 20mA, G 20mA
PDF
/
Buying Options
Total Price: USD $0.99
Unit Price: USD $0.9856
≥1 USD $0.9856
≥10 USD $0.62392
≥100 USD $0.461736
≥500 USD $0.424283
≥1000 USD $0.349404
Inventory: 1158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 4-SMD
Number of Pins 4
Supplier Device Package SMD
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 3.00mm Lx2.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Color Green, Red
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Green 2V Red
Viewing Angle 120°
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Domed Top
Lens Size 2.00mmx1.00mm
Forward Voltage 2V
Luminous Intensity 42 mcd
Millicandela Rating 25.5mcd Green, 42mcd Red
Wavelength - Peak 571nm Green 660nm Red
Wavelength - Dominant 570nm Green 639nm Red
Number of LEDs 2
Dimensions
Height 1.1mm
Length 3mm
Width 2mm
Height (Max) 1.10mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
