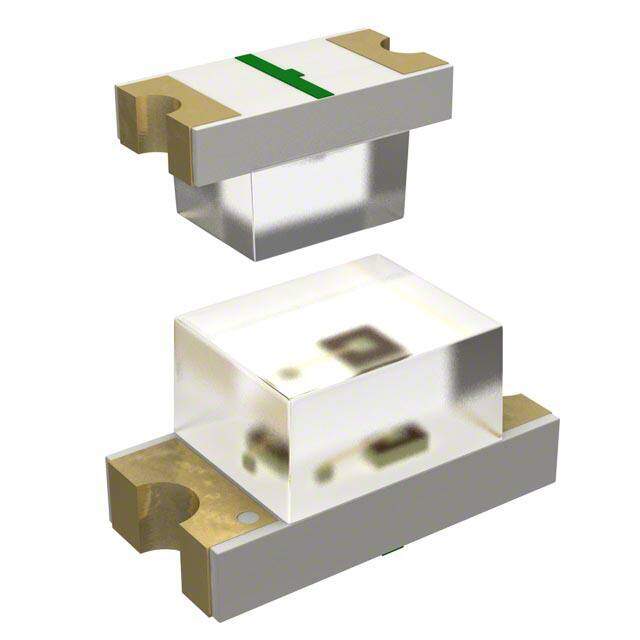

HSMB-C190
RoHS
/
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $4.52
Unit Price: USD $4.52295
≥1 USD $4.52295
≥10 USD $3.71165
≥100 USD $3.59575
≥500 USD $3.47985
≥1000 USD $3.36395
Inventory: 3471
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 0.80mm
Width 800μm
Length 1.6mm
Height 800μm
Technical
Wavelength - Dominant 466nm
Wavelength 466 nm
Lens Color Colorless
Wavelength - Peak 428nm
Lens Transparency Clear
Illumination Color Blue
Millicandela Rating 6mcd
Luminous Intensity 6 mcd
Forward Voltage 3.8V
Lens Size 1.00mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Forward Current 20mA
Viewing Angle 170°
Voltage - Forward (Vf) (Typ) 3.8V
Configuration Standard
Case Code (Imperial) 0603
Case Code (Metric) 1608
Base Part Number HSMB-C190
Voltage - Rated DC 3.8V
Power Rating 92mW
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Size / Dimension 1.60mm Lx0.80mm W
Published 2002
Packaging Tape & Reel (TR)
Physical
Supplier Device Package Chip LED
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
