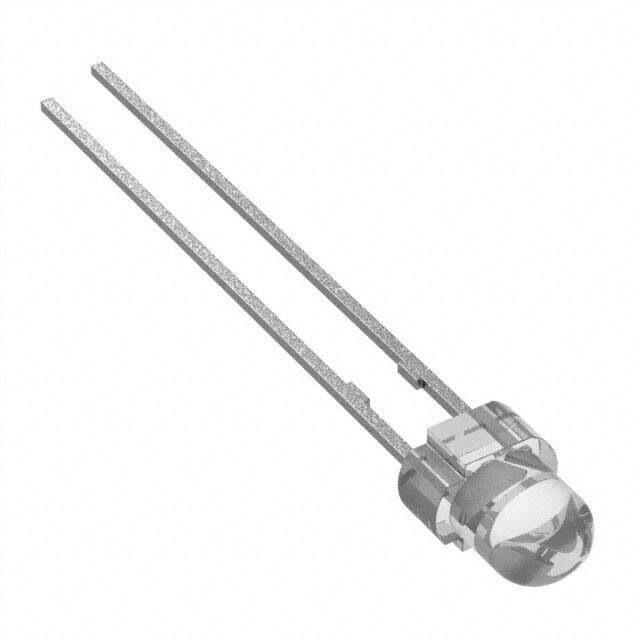

HLMP-NS30-J0000 image
Favorite
HLMP-NS30-J0000 image
Favorite

HLMP-NS30-J0000

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description Standard LEDs - Through Hole Blue nGaN 470nmBlue
PDF
/
Buying Options
Total Price: USD $1.97
Unit Price: USD $1.9712
≥1 USD $1.9712
≥10 USD $1.3156
≥100 USD $1.012352
≥500 USD $0.915112
≥1000 USD $0.786421
≥3000 USD $0.74353
Inventory: 924
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 4.4mm
Height 6.35mm
Diameter 3mm

Technical

Reverse Voltage-Max 5V
T-code T-1
Wavelength - Dominant 470nm
Wavelength - Peak 468nm
Lens Transparency Clear
Millicandela Rating 240mcd
Luminous Intensity 310 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 3.2V
Configuration Standard
Number of Elements 1
Base Part Number HLMP-N*30
Depth 3.4mm
Number of Functions 1
Subcategory Visible LEDs
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2009
Packaging Bulk

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
