HLMP-HG75-XY0DD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

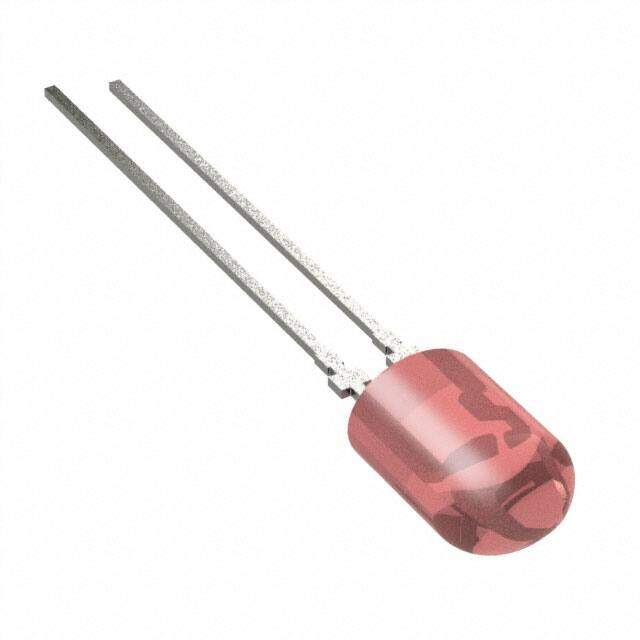

BROADCOM LIMITED HLMP-HG75-XY0DD LED, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 2.1 V, 626 nm
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.836
≥1 USD $0.836
≥10 USD $0.54384
≥100 USD $0.356312
≥500 USD $0.281301
Inventory: 11990
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Tape & Box (TB)
Published 2007
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red
Subcategory Visible LEDs
Packing Method AMMO PACK
Number of Functions 1
Depth 3.8mm
Base Part Number HLMP-H*75
Number of Elements 1
Configuration Standard
Power Dissipation 120mW
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 100°, 40°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Oval with Domed Top
Lens Size 5.20mmx3.80mm
Luminous Intensity 2.4 cd
Millicandela Rating 2030mcd
Lens Transparency Diffused
Wavelength - Peak 634nm
Reverse Voltage 5V
Wavelength - Dominant 626nm
Dimensions
Height 11.3mm
Length 5.2mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
