HLMP-EL3A-WXKDV
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

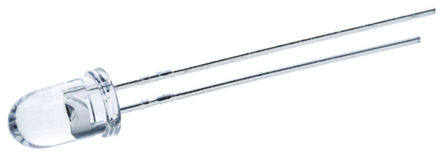

LED Uni-Color Amber 594nm 2-Pin T-1 3/4 Ammo
PDF
/
Inventory: 2733
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 5.8mm
Height 8.91mm
Technical
Wavelength - Dominant 590nm
Reverse Voltage 5V
Luminous Flux 2 lm
Lens Color Colorless
Wavelength - Peak 594nm
Lens Transparency Clear
Millicandela Rating 7400mcd
Luminous Intensity 7.4 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 50mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 2.1V
Power Dissipation 120mW
Configuration Standard
Number of Elements 1
Base Part Number HLMP-EL3A
Depth 5.8mm
Number of Functions 1
Packing Method AMMO PACK
Subcategory Visible LEDs
Additional Feature HIGH RELIABILITY
Color Amber
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2010
Packaging Tape & Box (TB)
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
