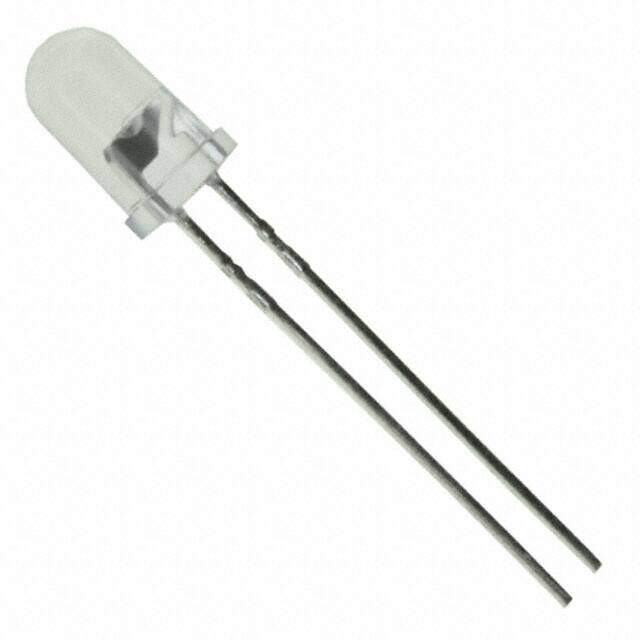

HLMP-EL15-VY0DD
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED AMBER CLEAR 5MM ROUND T/H
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.793658
≥1 USD $0.793658
≥10 USD $0.748733
≥100 USD $0.706357
≥500 USD $0.666369
≥1000 USD $0.628653
Inventory: 2830
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 5.8mm
Height 8.91mm
Diameter 5mm
Technical
Wavelength - Dominant 590nm
Reverse Voltage 20V
Luminous Flux 500 mlm
Lens Color Colorless
Wavelength - Peak 592nm
Lens Transparency Clear
Illumination Color Orange
Millicandela Rating 8100mcd
Luminous Intensity 12 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 50mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 15°
Voltage - Forward (Vf) (Typ) 2.02V
Configuration Standard
Number of Elements 1
Base Part Number HLMP-EL15
Depth 5.8mm
Number of Functions 1
Packing Method AMMO PACK
Additional Feature HIGH RELIABILITY
Color Amber
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tape & Box (TB)
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
