HLMP-EH08-Y2000
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

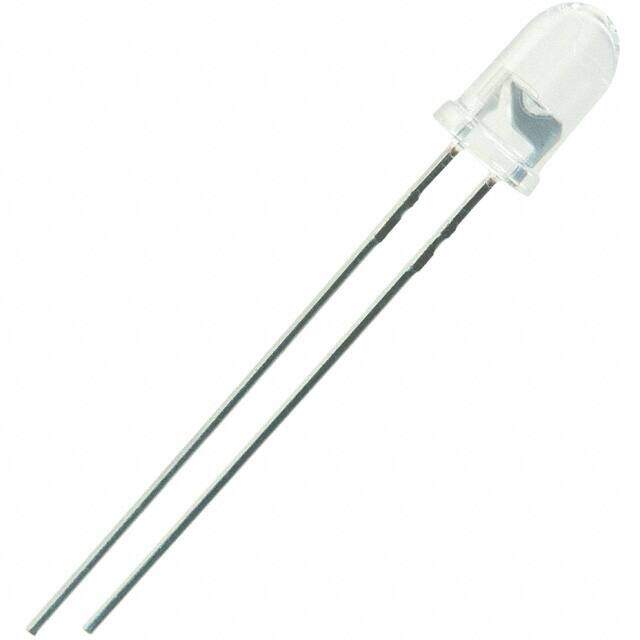

LED RED CLEAR T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.81
Unit Price: USD $0.8096
≥1 USD $0.8096
≥10 USD $0.528
≥100 USD $0.346104
≥500 USD $0.27324
≥1000 USD $0.255024
≥3000 USD $0.245916
Inventory: 1251
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 5.8mm
Height 8.91mm
Diameter 5mm
Technical
Wavelength - Dominant 615nm
Reverse Voltage 20V
Luminous Flux 500 mlm
Lens Color Colorless
Wavelength - Peak 621nm
Lens Transparency Clear
Illumination Color Orange
Millicandela Rating 18150mcd
Luminous Intensity 27 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 50mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 8°
Voltage - Forward (Vf) (Typ) 1.94V
Configuration Standard
Number of Elements 1
Base Part Number HLMP-EH08
Depth 5.8mm
Number of Functions 1
Subcategory Visible LEDs
Additional Feature HIGH RELIABILITY
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2012
Packaging Bulk
Physical
Shape Round
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 16 Weeks
