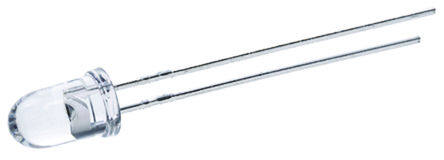

HLMP-EG3B-WX0DV
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED Uni-Color Red 634nm 2-Pin T-1 3/4 Ammo
PDF
/
Inventory: 1161
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Tape & Box (TB)
Published 2010
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red
Additional Feature HIGH RELIABILITY
Subcategory Visible LEDs
Packing Method AMMO PACK
Number of Functions 1
Depth 5.8mm
Base Part Number HLMP-EG3B
Number of Elements 1
Configuration Standard
Power Dissipation 120mW
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 30°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 50mA
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 7.4 cd
Millicandela Rating 7400mcd
Lens Transparency Clear
Wavelength - Peak 634nm
Lens Color Colorless
Luminous Flux 1.9 lm
Reverse Voltage 5V
Wavelength - Dominant 626nm
Dimensions
Length 5.8mm
Compliance
RoHS Status ROHS3 Compliant
