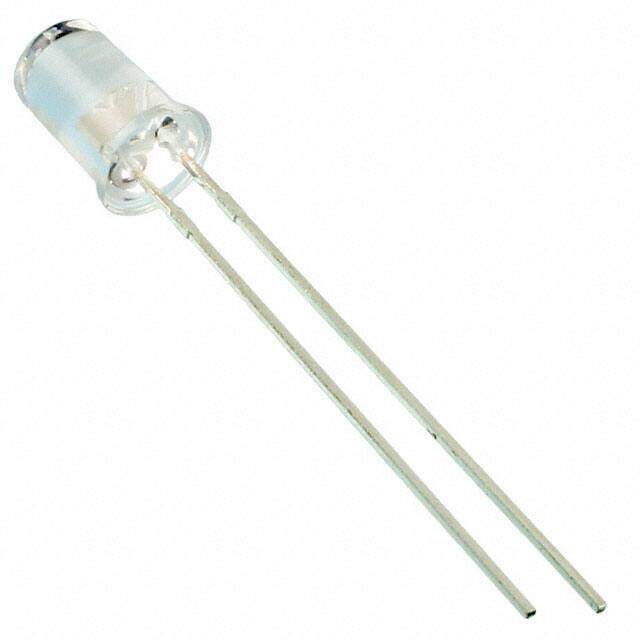

HLMP-DB25-B0000
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HLMP-DB25-B0000 LED, Blue, Through Hole, T-1 3/4 (5mm), 20 mA, 3.2 V, 470 nm
PDF
/
Buying Options
Total Price: USD $1.03
Unit Price: USD $1.0296
≥1 USD $1.0296
≥10 USD $0.65032
≥100 USD $0.48092
≥500 USD $0.441954
≥1000 USD $0.363968
≥3000 USD $0.34577
Inventory: 1149
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
Published 2000
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Blue
Subcategory Visible LEDs
Number of Functions 1
Depth 6.1mm
Base Part Number HLMP-DB25
Lead Length 22.9mm
Number of Elements 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 25°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 40 mcd
Millicandela Rating 40mcd
Lens Transparency Clear
Wavelength - Peak 464nm
Lens Color Colorless
Reverse Voltage 5V
Forward Voltage-Max 5V
Wavelength - Dominant 470nm
Dimensions
Diameter 5mm
Height 8.81mm
Length 6.1mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
