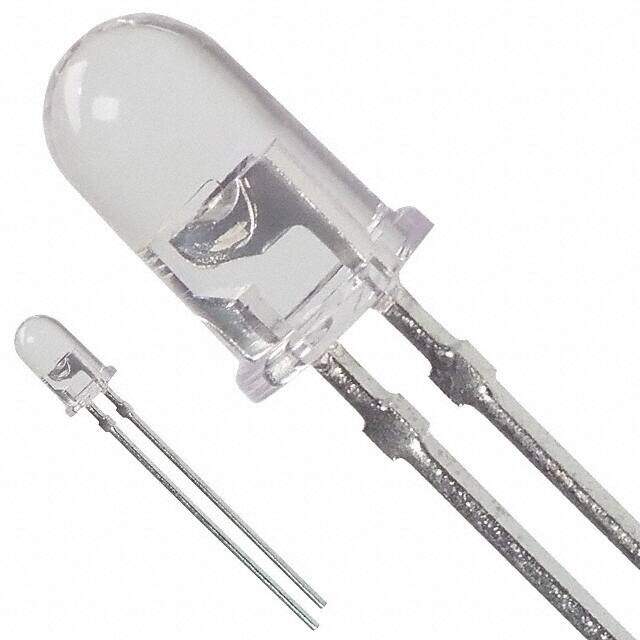

HLMP-D105

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description BROADCOM LIMITED HLMP-D105 LED, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 1.8 V, 637 nm
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.3344
≥100 USD $0.192192
≥500 USD $0.150383
≥1000 USD $0.137852
≥3000 USD $0.125321
Inventory: 10548
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 6.1mm
Height 12.44mm
Diameter 5mm

Technical

Wavelength - Dominant 637nm
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 645nm
Lens Transparency Clear
Millicandela Rating 240mcd
Luminous Intensity 240 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 24°
Voltage - Forward (Vf) (Typ) 1.8V
Power Dissipation 87mW
Configuration Standard
Number of Elements 1
Lead Length 23mm
Base Part Number HLMP-D105
Current Rating 30mA
Depth 6.1mm
Number of Functions 1
Subcategory Visible LEDs
Additional Feature TTL AND CMOS COMPATIBLE
Color Red
Min Operating Temperature -20°C
Max Operating Temperature 100°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2004
Packaging Bulk

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
