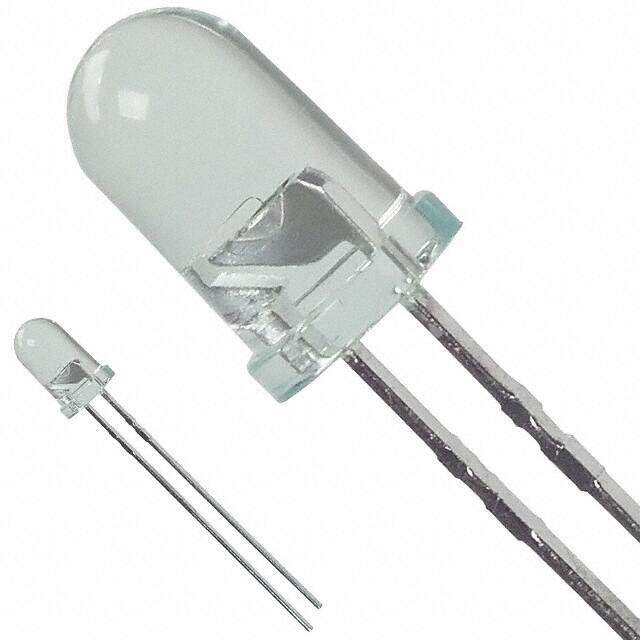

HLMP-C515
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED, 5MM, GREEN, 300MCD, 570NM
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.37136
≥100 USD $0.24596
≥500 USD $0.189886
≥1000 USD $0.171582
≥3000 USD $0.160142
Inventory: 1622
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 5.8mm
Height 8.91mm
Diameter 5mm
Technical
Wavelength - Dominant 570nm
Forward Voltage-Max 3V
Reverse Voltage 5V
Wavelength - Peak 568nm
Lens Transparency Clear
Millicandela Rating 300mcd
Luminous Intensity 170 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 15°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Number of Elements 1
Lead Length 23mm
Base Part Number HLMP-C515
Depth 5.8mm
Number of Functions 1
Subcategory Visible LEDs
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2009
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
