HLMP-C323
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

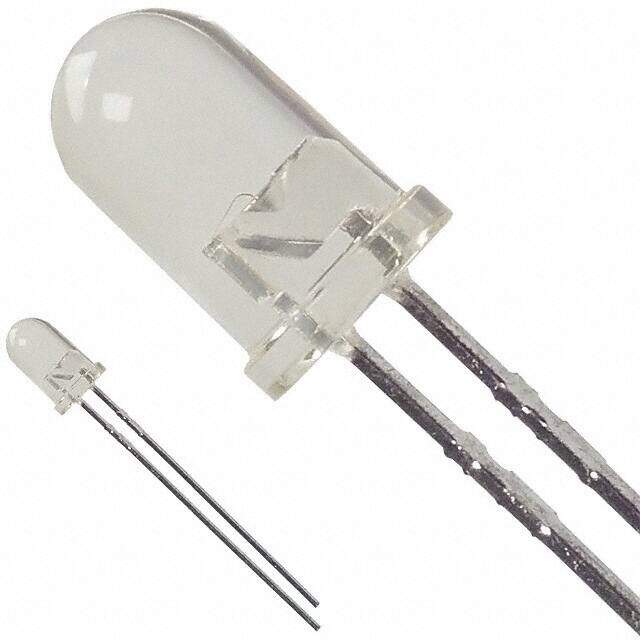

BROADCOM LIMITED HLMP-C323 LED, Yellow, Through Hole, T-1 3/4 (5mm), 20 mA, 2.1 V, 585 nm
PDF
/
Buying Options
Total Price: USD $0.65
Unit Price: USD $0.6512
≥1 USD $0.6512
≥10 USD $0.4224
≥100 USD $0.276584
≥500 USD $0.218381
≥1000 USD $0.203826
≥3000 USD $0.196539
Inventory: 1322
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Length 5.8mm
Height 8.91mm
Diameter 5mm
Technical
Wavelength - Dominant 585nm
Reverse Voltage 5V
Wavelength - Peak 583nm
Lens Transparency Clear
Millicandela Rating 170mcd
Luminous Intensity 96.2 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 25°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Number of Elements 1
Lead Length 23mm
Base Part Number HLMP-C323
Depth 5.8mm
Number of Functions 1
Subcategory Visible LEDs
Color Yellow
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2005
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
