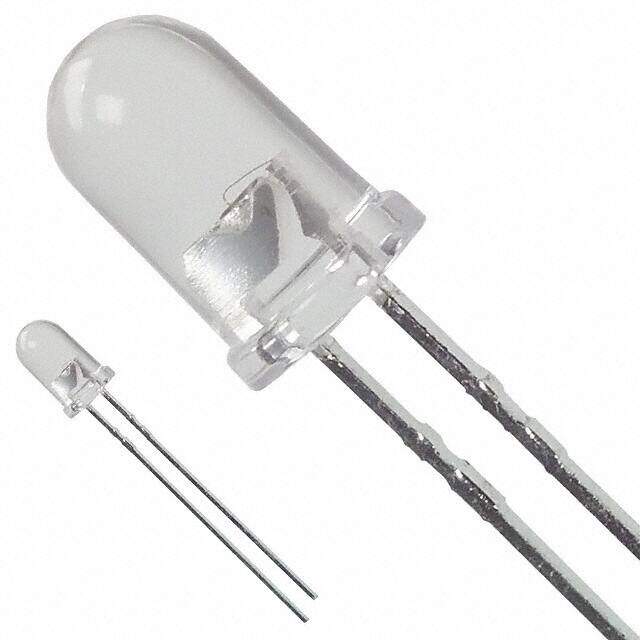

HLMP-C115
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.40744
≥100 USD $0.266816
≥500 USD $0.210628
≥1000 USD $0.196592
≥3000 USD $0.18957
Inventory: 1260
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
Published 2011
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Red
Subcategory Visible LEDs
Number of Functions 1
Depth 5.8mm
Base Part Number HLMP-C115
Lead Pitch 2.54mm
Lead Length 23mm
Number of Elements 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 15°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 600 mcd
Millicandela Rating 600mcd
Lens Transparency Clear
Wavelength - Peak 645nm
Reverse Voltage 5V
Wavelength - Dominant 637nm
Dimensions
Diameter 5mm
Height 8.91mm
Length 5.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
