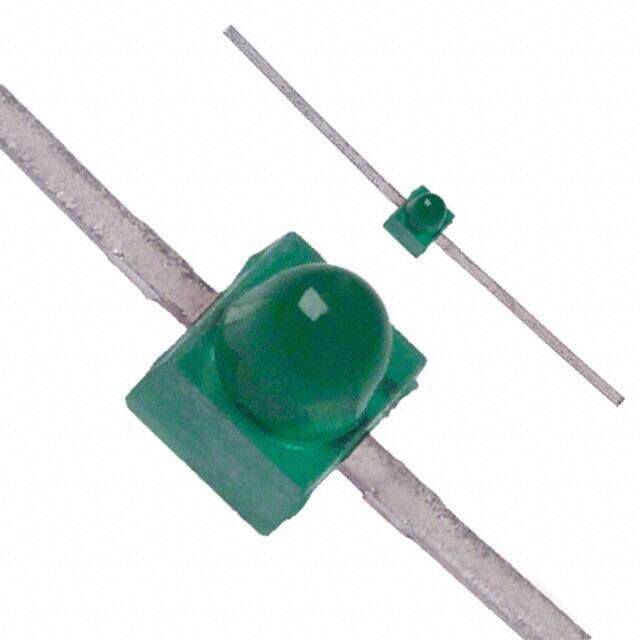

HLMP-6820 image
Favorite
HLMP-6820 image
Favorite

HLMP-6820

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Axial, Flat Leads
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN DIFF AXIAL T/H AXIAL
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.0328
≥1 USD $2.0328
≥10 USD $1.35344
≥100 USD $1.041832
≥500 USD $0.941723
≥1000 USD $0.809301
≥3000 USD $0.76516
Inventory: 1193
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Axial, Surface Mount, Through Hole
Mounting Type Through Hole, Axial
Package / Case Axial, Flat Leads
Number of Pins 2

Technical

Packaging Bulk
Published 2014
Size / Dimension 2.08mm Lx2.21mm W
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Green
Additional Feature TTL COMPATIBLE
Subcategory Visible LEDs
Number of Functions 1
Depth 2.34mm
Base Part Number HLMP-6820
Number of Elements 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 90°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 1.91mm Dia
Luminous Intensity 2 mcd
Lens Transparency Diffused
Wavelength - Peak 565nm
Reverse Voltage 5V
Wavelength - Dominant 569nm
T-code T-3/4

Dimensions

Diameter 1.8mm
Height 2.92mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
