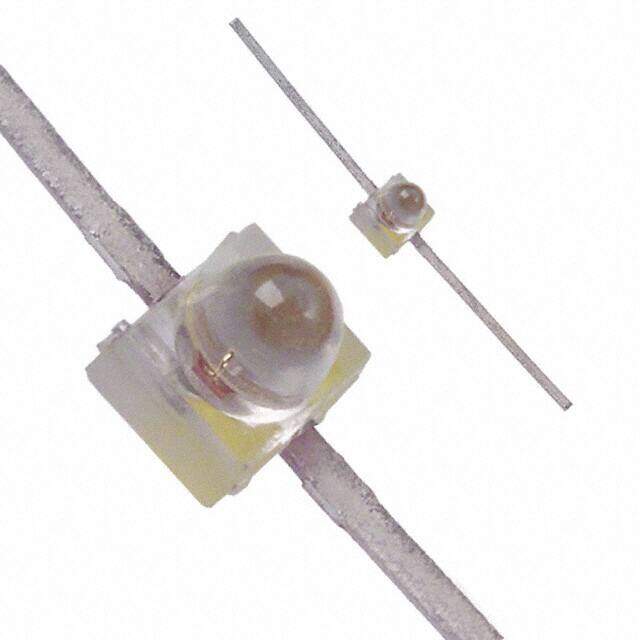

HLMP-6405
RoHS
RoHS compliant
RoHS compliantPackage Axial, Flat Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR AXIAL T/H AXIAL
PDF
/
Buying Options
Total Price: USD $1.64
Unit Price: USD $1.6368
≥1 USD $1.6368
≥10 USD $1.03752
≥100 USD $0.767624
≥500 USD $0.705355
≥1000 USD $0.580888
≥3000 USD $0.551848
Inventory: 1367
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Axial, Surface Mount, Through Hole
Mounting Type Through Hole, Axial
Package / Case Axial, Flat Leads
Number of Pins 2
Technical
Packaging Bulk
Size / Dimension 2.08mm Lx2.21mm W
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -55°C
Color Yellow
Additional Feature TTL COMPATIBLE
Subcategory Visible LEDs
Number of Functions 1
Depth 2.34mm
Base Part Number HLMP-6405
Number of Elements 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 28°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Current - Test 10mA
Lens Style Round with Domed Top
Lens Size 1.91mm Dia
Luminous Intensity 20 mcd
Lens Transparency Clear
Wavelength - Peak 583nm
Lens Color Colorless
Reverse Voltage 5V
Forward Voltage-Max 3V
Wavelength - Dominant 585nm
T-code T-3/4
Dimensions
Diameter 1.8mm
Height 2.92mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
