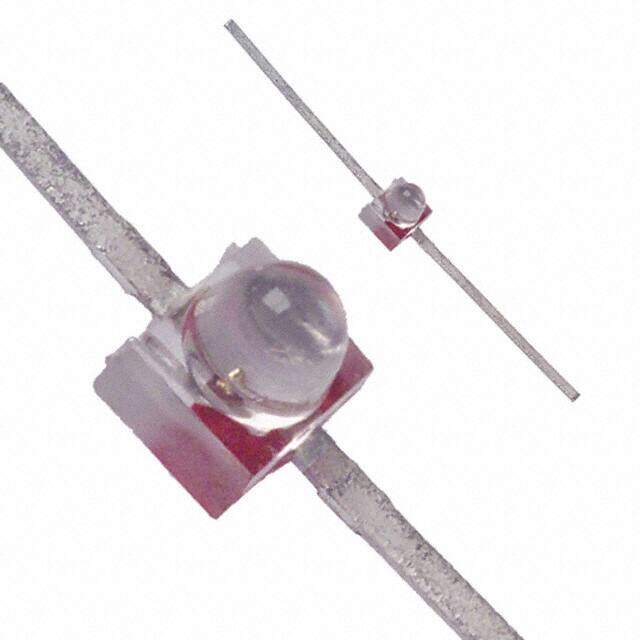

HLMP-6305
RoHS
RoHS compliant
RoHS compliantPackage Axial, Flat Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR AXIAL T/H AXIAL
PDF
/
Buying Options
Total Price: USD $1.13
Unit Price: USD $1.1264
≥1 USD $1.1264
≥10 USD $0.71104
≥100 USD $0.526064
≥500 USD $0.50065
Inventory: 1187
Minimum: 1
-
+
Technical Details
Technical
Forward Voltage-Max 3V
Wavelength - Dominant 626nm
T-code T-3/4
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 635nm
Lens Transparency Clear
Luminous Intensity 40 mcd
Lens Size 1.91mm Dia
Lens Style Round with Domed Top
Current - Test 10mA
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 28°
Voltage - Forward (Vf) (Typ) 1.8V
Configuration Standard
Number of Elements 1
Base Part Number HLMP-6305
Depth 2.34mm
Number of Functions 1
Subcategory Visible LEDs
Additional Feature TTL COMPATIBLE
Color Red
Min Operating Temperature -55°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e3
Size / Dimension 2.08mm Lx2.21mm W
Published 2014
Packaging Bulk
Dimensions
Diameter 1.8mm
Height 2.92mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Number of Pins 2
Package / Case Axial, Flat Leads
Mounting Type Through Hole, Axial
Mount Axial, Surface Mount, Through Hole
Supply Chain
Factory Lead Time 13 Weeks
