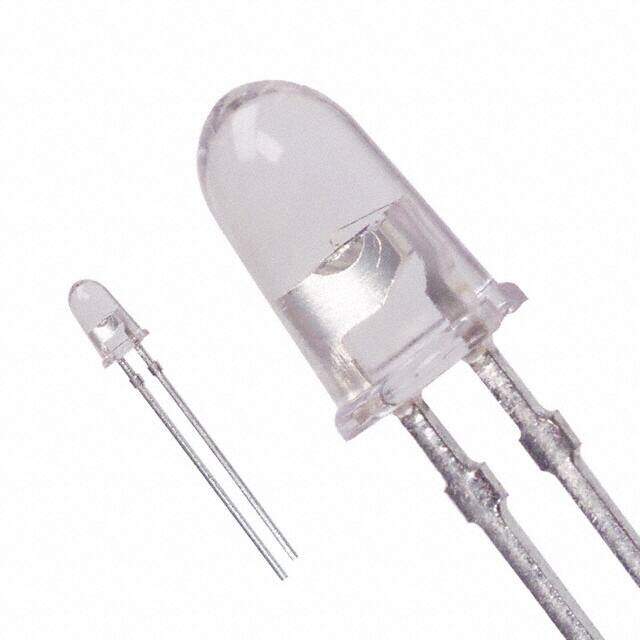

HLMP-4101
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED HLMP-4101 LED, Red, Through Hole, T-1 3/4 (5mm), 20 mA, 1.8 V, 642 nm
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.69356
≥1 USD $0.69356
≥10 USD $0.654301
≥100 USD $0.617272
≥500 USD $0.582326
≥1000 USD $0.549364
Inventory: 1402
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 12.44mm
Diameter 5mm
Technical
Number of LEDs 1
Wavelength - Dominant 642nm
Lens Color Colorless
Wavelength - Peak 650nm
Lens Transparency Clear
Millicandela Rating 1000mcd
Luminous Intensity 1 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 8°
Voltage - Forward (Vf) (Typ) 1.8V
Configuration Standard
Lead Length 23mm
Base Part Number HLMP-4101
Number of Functions 1
Subcategory Visible LEDs
Additional Feature CMOS COMPATIBLE
Color Red
Min Operating Temperature -20°C
Max Operating Temperature 100°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2005
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 13 Weeks
