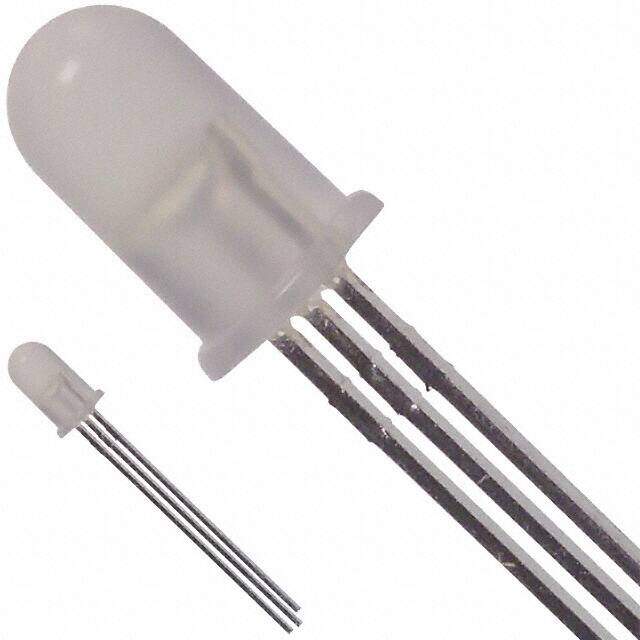

HLMP-4000
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
AVAGO TECHNOLOGIES HLMP-4000 LED, T-1 3/4 (5mm), Green, Red, R 2.1mcd, G 4.2mcd, 65 , R 1.9V, G 2.2V, R 10mA, G 10mA
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.45232
≥100 USD $0.296384
≥500 USD $0.233974
≥1000 USD $0.218381
≥3000 USD $0.210584
Inventory: 1419
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Tin
Mount Panel, Through Hole
Mounting Type Through Hole
Package / Case Radial - 3 Leads
Technical
Packaging Bulk
Published 2004
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
Termination Radial
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Green, Red
Subcategory Visible LEDs
Voltage - Rated DC 1.9V
Max Power Dissipation 135mW
Number of Functions 1
Depth 6.1mm
Base Part Number HLMP-4000
Lead Length 25mm
Configuration Common Cathode
Power Dissipation 135mW
Voltage - Forward (Vf) (Typ) 2.2V Green 1.9V Red
Viewing Angle 65°
Optoelectronic Device Type DUAL COLOR LED
Forward Current 25mA
Current - Test 10mA Green 10mA Red
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 2.1 mcd
Millicandela Rating 4.2mcd Green, 2.1mcd Red
Illumination Color Green, Red
Lens Transparency Diffused
Wavelength - Peak 568nm Green 635nm Red
Lens Color White
Reverse Voltage 5V
Wavelength - Dominant 570nm Green 626nm Red
Number of LEDs 2
Dimensions
Diameter 5mm
Height 9.19mm
Length 6.1mm
Width 6.1mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
