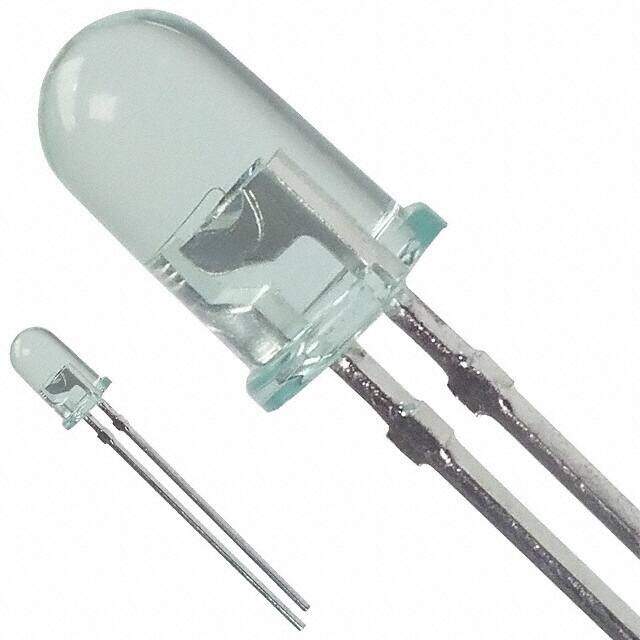

HLMP-3950 image
Favorite
HLMP-3950 image
Favorite

HLMP-3950

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN CLEAR T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $2.74
Unit Price: USD $2.74265
≥1 USD $2.74265
≥10 USD $2.25055
≥100 USD $2.18025
≥500 USD $2.10995
≥1000 USD $2.03965
Inventory: 10687
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2

Technical

Packaging Bulk
Published 2005
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Green
Additional Feature IC COMPATIBLE
Subcategory Visible LEDs
Number of Functions 1
Depth 6.1mm
Base Part Number HLMP-3950
Lead Length 23mm
Number of Elements 1
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 24°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 265 mcd
Millicandela Rating 265mcd
Lens Transparency Clear
Wavelength - Peak 565nm
Lens Color Colorless
Reverse Voltage 5V
Forward Voltage-Max 3V
Wavelength - Dominant 569nm

Dimensions

Diameter 5mm
Height 12.44mm
Length 6.1mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
