HLMP-3554
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

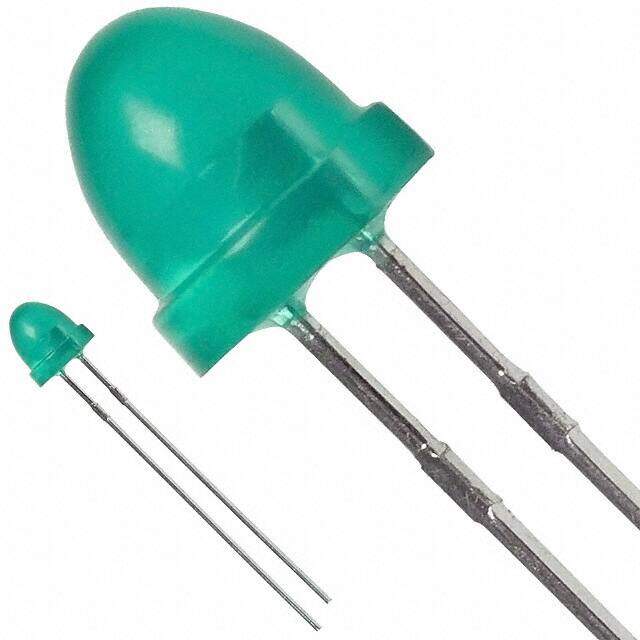

BROADCOM LIMITED HLMP-3554 LED, Green, Through Hole, T-1 3/4 (5mm), 10 mA, 2.1 V, 569 nm
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.6776
≥1 USD $0.6776
≥10 USD $0.44352
≥100 USD $0.290488
≥500 USD $0.22931
≥1000 USD $0.214025
≥3000 USD $0.206378
Inventory: 16055
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
Published 2008
JESD-609 Code e3
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Max Operating Temperature 100°C
Min Operating Temperature -20°C
Color Green
Additional Feature IC COMPATIBLE
Subcategory Visible LEDs
Voltage - Rated DC 2.1V
Max Power Dissipation 135mW
Number of Functions 1
Depth 6.1mm
Base Part Number HLMP-3554
Lead Length 25.4mm
Number of Elements 1
Configuration Standard
Power Dissipation 135mW
Viewing Angle 50°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 10mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 6.7 mcd
Millicandela Rating 6.7mcd
Lens Transparency Diffused
Wavelength - Peak 565nm
Reverse Voltage 5V
Forward Voltage-Max 3V
Wavelength - Dominant 569nm
Dimensions
Diameter 5mm
Height 6.35mm
Length 6.1mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
