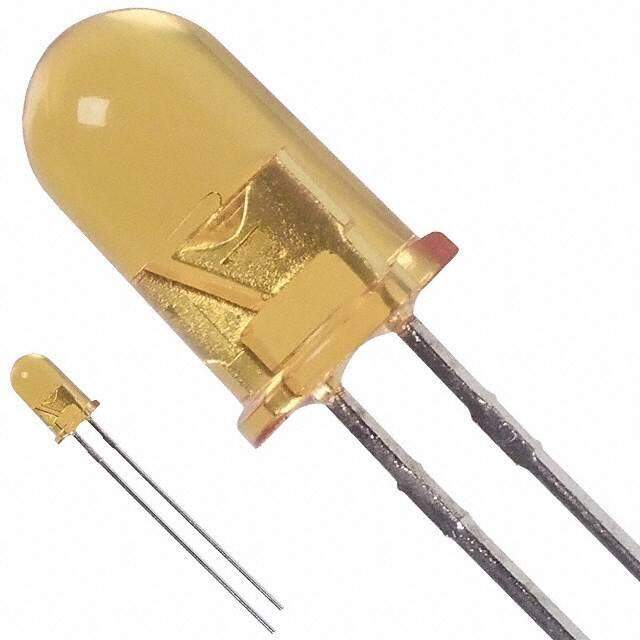

HLMP-3416 image
Favorite
HLMP-3416 image
Favorite

HLMP-3416

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED; Yellow; 14.7 mcd (Min.); 0.240 in.; T-1 3/4; 2 V; 20 mA; Panel; Radial
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.24992
≥100 USD $0.143528
≥500 USD $0.112306
≥1000 USD $0.102951
≥3000 USD $0.093588
Inventory: 28263
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 6.1mm
Height 9.19mm
Diameter 5mm

Technical

Wavelength - Dominant 585nm
Forward Voltage-Max 3V
Reverse Voltage 5V
Wavelength - Peak 583nm
Lens Transparency Clear
Millicandela Rating 50mcd
Luminous Intensity 14.7 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 35°
Power Dissipation 85mW
Configuration Standard
Number of Elements 1
Lead Length 25mm
Base Part Number HLMP-3416
Current Rating 20mA
Depth 6.1mm
Number of Functions 1
Voltage - Rated DC 2V
Subcategory Visible LEDs
Color Yellow
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2005
Packaging Bulk

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Panel, Through Hole

Supply Chain

Factory Lead Time 13 Weeks
