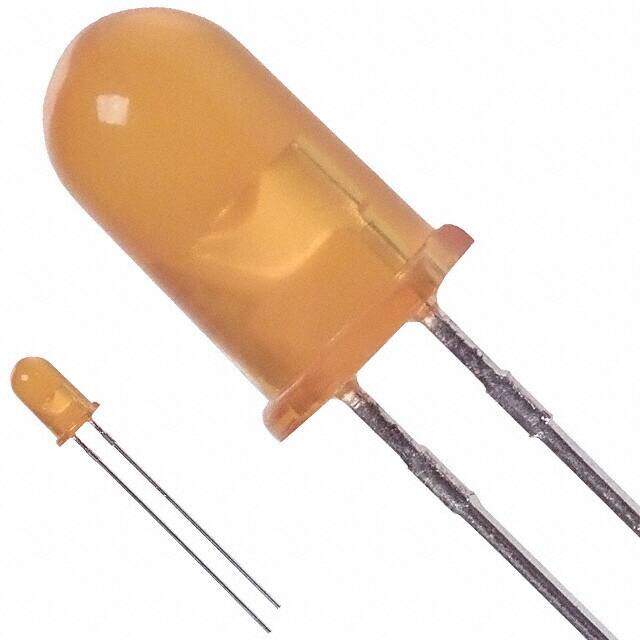

HLMP-3401-E0002
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - Through Hole GaP Yellow
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.29128
≥100 USD $0.167464
Inventory: 19993
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 6.1mm
Height 9.19mm
Diameter 5mm
Technical
Wavelength - Dominant 585nm
Reverse Voltage 5V
Wavelength - Peak 583nm
Lens Transparency Diffused
Luminous Intensity 5.7 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 10mA
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation 85mW
Configuration Standard
Number of Elements 1
Base Part Number HLMP-3401
Depth 6.1mm
Number of Functions 1
Max Power Dissipation 85mW
Packing Method TAPE AND REEL
Subcategory Visible LEDs
Color Yellow
Min Operating Temperature -40°C
Max Operating Temperature 100°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2013
Packaging Tape & Reel (TR)
Physical
Shape Round
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 13 Weeks
