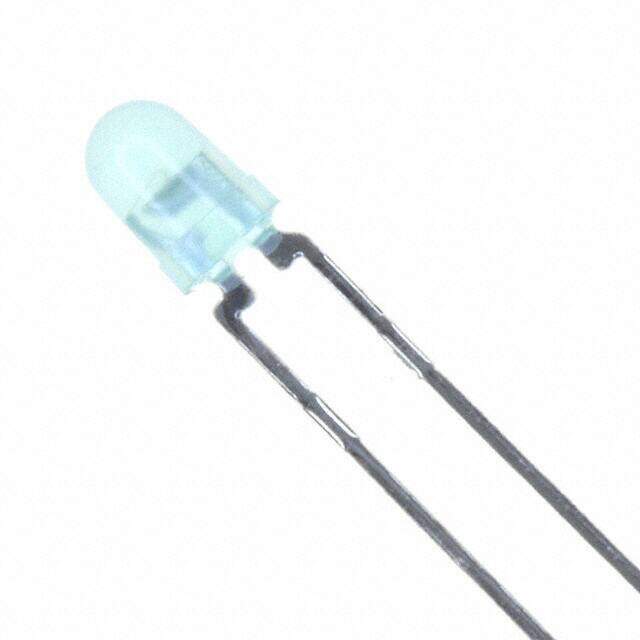

HLMP-1790-A0002
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN DIFFUSED T-1 T/H
PDF
/
Buying Options
Total Price: USD $0.56
Unit Price: USD $0.5632
≥1 USD $0.5632
≥10 USD $0.37136
≥100 USD $0.24596
Inventory: 1143
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Width 3.43mm
Length 3.43mm
Height 4.19mm
Diameter 3mm
Technical
T-code T-1
Wavelength - Dominant 569nm
Reverse Voltage 5V
Wavelength - Peak 565nm
Lens Transparency Diffused
Luminous Intensity 2.3 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 2mA
Forward Current 7mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 50°
Voltage - Forward (Vf) (Typ) 1.9V
Power Dissipation 15.4mW
Configuration Standard
Number of Elements 1
Base Part Number HLMP-1790
Depth 3.43mm
Number of Functions 1
Max Power Dissipation 24mW
Packing Method TAPE AND REEL
Subcategory Visible LEDs
Additional Feature CMOS COMPATIBLE
Color Green
Min Operating Temperature -20°C
Max Operating Temperature 100°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2003
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
