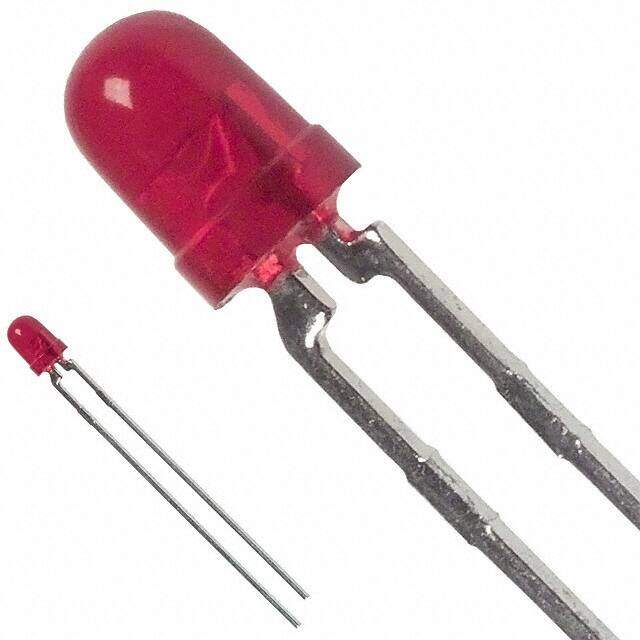

HLMP-1601 image
Favorite
HLMP-1601 image
Favorite

HLMP-1601

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description BROADCOM LIMITED HLMP-1601 LED, Red, Through Hole, T-1 (3mm), 13 mA, 12 V, 626 nm
PDF
/
Buying Options
Total Price: USD $0.7
Unit Price: USD $0.6952
≥1 USD $0.6952
≥10 USD $0.45408
≥100 USD $0.297176
≥500 USD $0.234643
≥1000 USD $0.219006
≥3000 USD $0.211182
Inventory: 1383
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 3.43mm
Height 6.35mm
Diameter 3mm

Technical

T-code T-1
Wavelength - Dominant 626nm
Reverse Voltage 5V
Wavelength - Peak 635nm
Lens Transparency Diffused
Millicandela Rating 2.1mcd
Luminous Intensity 2.1 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Forward Current 13mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 12V
Configuration Standard
Number of Elements 1
Lead Length 24mm
Base Part Number HLMP-1601
Depth 3.43mm
Number of Functions 1
Packing Method TAPE AND REEL
Subcategory Visible LEDs
Additional Feature TTL COMPATIBLE
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2005
Packaging Bulk

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
