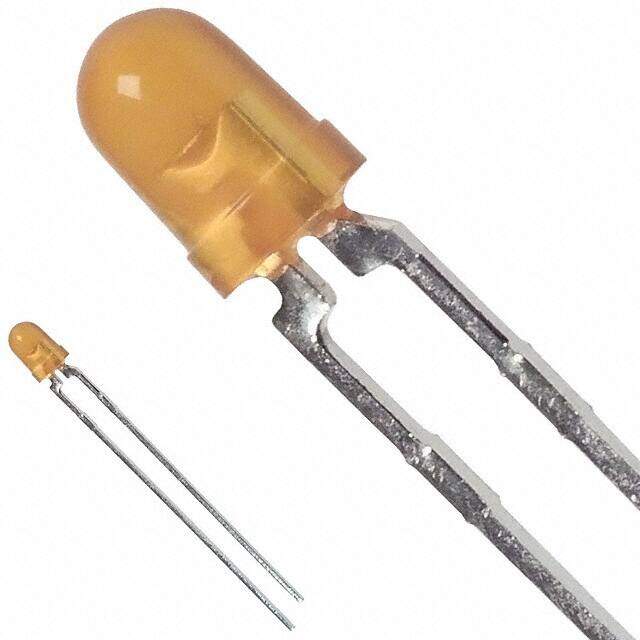

HLMP-1401 image
Favorite
HLMP-1401 image
Favorite

HLMP-1401

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description AVAGO TECHNOLOGIES HLMP-1401 LED, Yellow, T-1 (3mm), 585 nm, 2 V, 10 mA, 2.2 mcd
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.3124
≥100 USD $0.179872
≥500 USD $0.140738
≥1000 USD $0.129008
≥3000 USD $0.117286
Inventory: 59956
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 3.43mm
Height 6.35mm
Diameter 3.429mm

Technical

T-code T-1
Wavelength - Dominant 585nm
Reverse Voltage 5V
Wavelength - Peak 583nm
Lens Transparency Diffused
Millicandela Rating 2.2mcd
Luminous Intensity 2.2 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Number of Elements 1
Lead Length 24mm
Base Part Number HLMP-1401
Depth 3.43mm
Number of Functions 1
Subcategory Visible LEDs
Color Yellow
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2011
Packaging Bulk

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 13 Weeks
