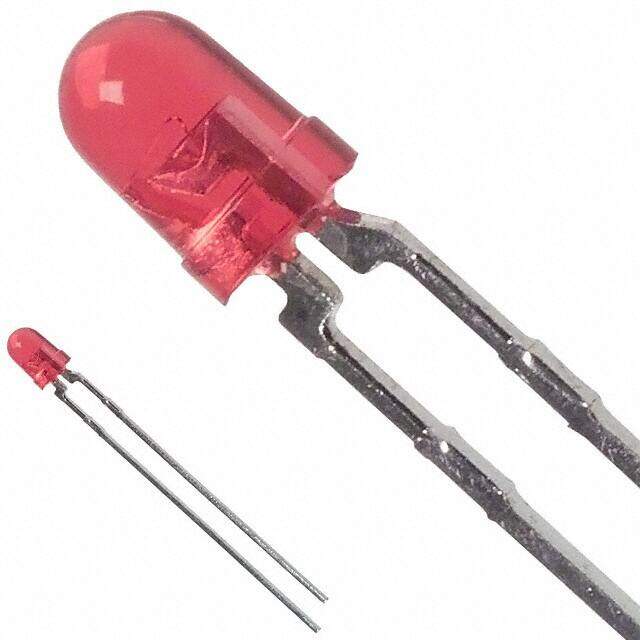

HLMP-1321

Broadcom Limited
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR T-1 T/H
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4048
≥1 USD $0.4048
≥10 USD $0.24992
≥100 USD $0.143528
≥500 USD $0.112306
≥1000 USD $0.102951
≥3000 USD $0.093588
Inventory: 48949
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Length 3.43mm
Height 6.35mm
Diameter 2.921mm

Technical

T-code T-1
Wavelength - Dominant 626nm
Forward Voltage-Max 3V
Reverse Voltage 5V
Wavelength - Peak 635nm
Lens Transparency Clear
Millicandela Rating 30mcd
Luminous Intensity 30 mcd
Lens Size 3mm T-1
Lens Style Round with Domed Top
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 45°
Voltage - Forward (Vf) (Typ) 1.9V
Power Dissipation 135mW
Configuration Standard
Number of Elements 1
Base Part Number HLMP-1321
Depth 3.43mm
Number of Functions 1
Max Power Dissipation 135mW
Subcategory Visible LEDs
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Published 2002
Packaging Bulk

Physical

Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin

Supply Chain

Factory Lead Time 9 Weeks
