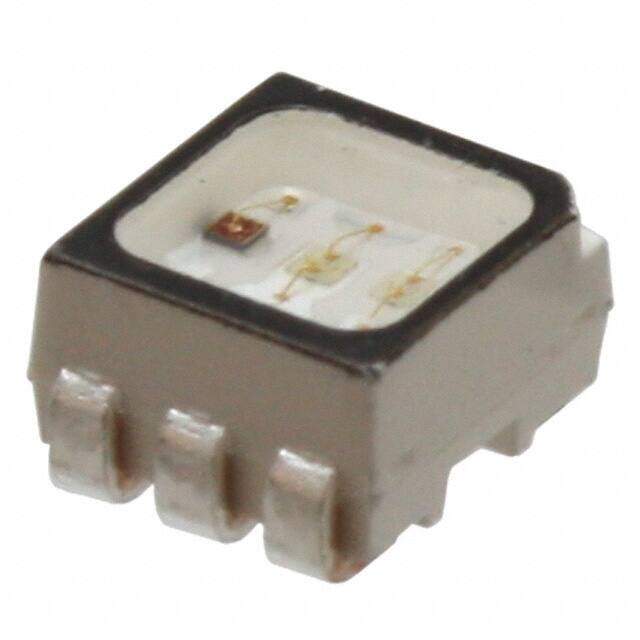

ASMT-YTD7-0AA02
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD PLCC6,T/MT SILICONE RGB
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232
≥1 USD $1.232
≥10 USD $0.77968
≥100 USD $0.577104
≥500 USD $0.530341
≥1000 USD $0.436753
Inventory: 49285
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 1.8mm
Technical
Wavelength - Dominant 623nm Red 529nm Green 469nm Blue
Reverse Voltage 4V
Lens Color Clear
Wavelength - Peak 630nm Red 522nm Green 465nm Blue
Lens Transparency Diffused
Millicandela Rating 650mcd Red, 1900mcd Green, 384mcd Blue
Luminous Intensity 384 mcd
Lens Size 2.30mm
Lens Style Square with Flat Top
Current - Test 20mA Red 20mA Green 20mA Blue
Forward Current 20mA
Optoelectronic Device Type TRIPLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.1V Red 3.1V Green 3.1V Blue
Configuration Independent
Number of Elements 3
Base Part Number ASMT-YT
Depth 3mm
Orientation Top View
HTS Code 8541.40.20.00
Color Red, Green, Blue (RGB)
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.00mm Lx2.80mm W
Published 2007
Packaging Tape & Reel (TR)
Physical
Number of Pins 6
Package / Case 6-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
