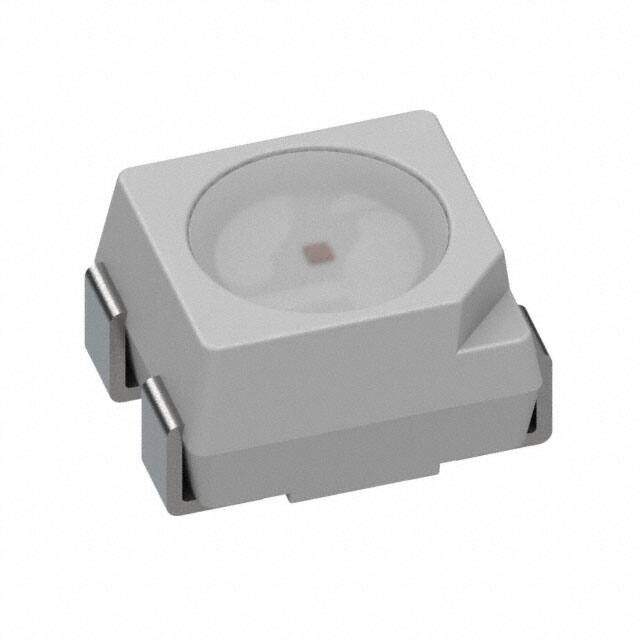

ASMT-SBB5-NT703
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED ASMT-SBB5-NT703 LED, Blue, SMD, 30 mA, 3.2 V, 470 nm
PDF
/
Buying Options
Total Price: USD $0.84
Unit Price: USD $0.836
≥1 USD $0.836
≥10 USD $0.54296
≥100 USD $0.355784
≥500 USD $0.280878
Inventory: 35329
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-PLCC
Number of Pins 4
Technical
Packaging Tape & Reel (TR)
Published 2010
Size / Dimension 3.20mm Lx2.80mm W
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 4
Terminal Finish Tin (Sn)
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Blue
Additional Feature HIGH RELIABILITY
Power Rating 114mW
Packing Method TR, 7 INCH
Max Power Dissipation 114mW
Number of Functions 1
Depth 3.2mm
Base Part Number ASMT-S*B5
Number of Elements 1
Configuration Standard
Power Dissipation 114mW
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Lens Style Round with Flat Top
Lens Size 2.20mm Dia
Luminous Intensity 535 mcd
Millicandela Rating 535mcd
Lens Transparency Clear
Lens Color Colorless
Reverse Voltage 5V
Wavelength 470 nm
Dimensions
Height 2.1mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
