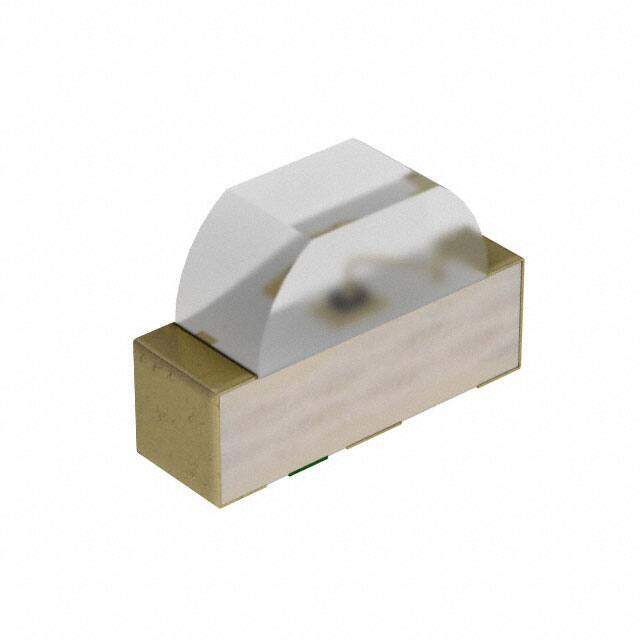

ASMT-CW00
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED ASMT-CW00 LED, White, SMD, 1.2mm, 5 mA, 3.15 V, 35 mcd
PDF
/
Buying Options
Total Price: USD $0.74
Unit Price: USD $0.7392
≥1 USD $0.7392
≥10 USD $0.48224
≥100 USD $0.316096
≥500 USD $0.249577
≥1000 USD $0.232936
Inventory: 16342
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 450μm
Technical
Number of LEDs 1
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 35mcd
Luminous Intensity 35 mcd
Lens Size 1.20mmx0.50mm
Lens Style Rectangle with Domed Top
Forward Current 5mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 150°
Voltage - Forward (Vf) (Typ) 2.85V
Configuration Standard
Base Part Number ASMT-C*00
Number of Functions 1
Max Power Dissipation 32mW
Packing Method TAPE AND REEL 7"
Power Rating 32mW
Subcategory Visible LEDs
Additional Feature SUPPORTS INFRARED
Color White
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Size / Dimension 1.60mm Lx1.00mm W
Published 2007
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
