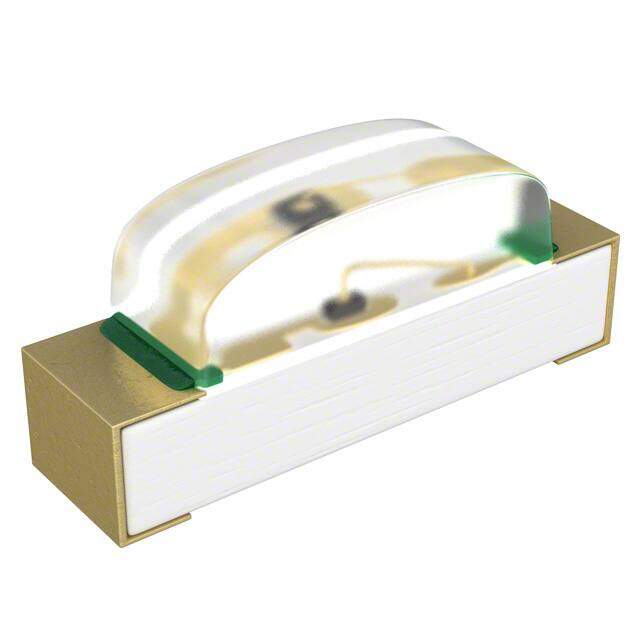

ASMT-CB00
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR CHIP SMD R/A
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.21384
≥100 USD $0.141416
≥500 USD $0.115826
Inventory: 15245
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 350μm
Technical
Wavelength - Dominant 473nm
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 469nm
Lens Transparency Clear
Millicandela Rating 18mcd
Luminous Intensity 18 mcd
Lens Size 1.20mmx0.50mm
Lens Style Rectangle with Domed Top
Forward Current 5mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 150°
Voltage - Forward (Vf) (Typ) 2.85V
Power Dissipation 32mW
Configuration Standard
Number of Elements 1
Case Code (Imperial) 0603
Case Code (Metric) 1608
Base Part Number ASMT-C*00
Depth 600μm
Number of Functions 1
Max Power Dissipation 32mW
Packing Method TAPE AND REEL 7"
Power Rating 32mW
Subcategory Visible LEDs
Additional Feature SUPPORTS INFRARED
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Copper/Nickel/Gold (Cu/Ni/Au)
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
JESD-609 Code e4
Size / Dimension 1.60mm Lx1.00mm W
Published 2007
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 13 Weeks
