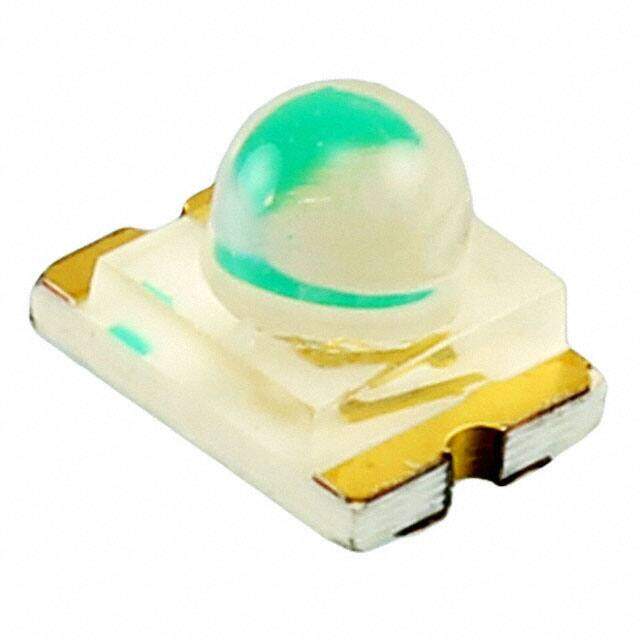

ASMT-BB20-NS000
RoHS
RoHS compliant
RoHS compliantPackage 1209 (3224 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR SMD
PDF
/
Buying Options
Total Price: USD $0.64
Unit Price: USD $0.6424
≥1 USD $0.6424
≥10 USD $0.41624
≥100 USD $0.272624
Inventory: 9786
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 2.4mm
Technical
Wavelength - Dominant 468nm
Reverse Voltage 5V
Lens Color Colorless
Wavelength - Peak 470nm
Lens Transparency Clear
Millicandela Rating 650mcd
Luminous Intensity 650 mcd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Forward Current 20mA
Viewing Angle 15°
Voltage - Forward (Vf) (Typ) 3.2V
Configuration Standard
Number of Elements 1
Case Code (Imperial) 1209
Case Code (Metric) 3224
Base Part Number ASMT-BB20
Depth 2.4mm
Subcategory Visible LEDs
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Size / Dimension 3.20mm Lx2.40mm W
Published 2000
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 1209 (3224 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 9 Weeks
