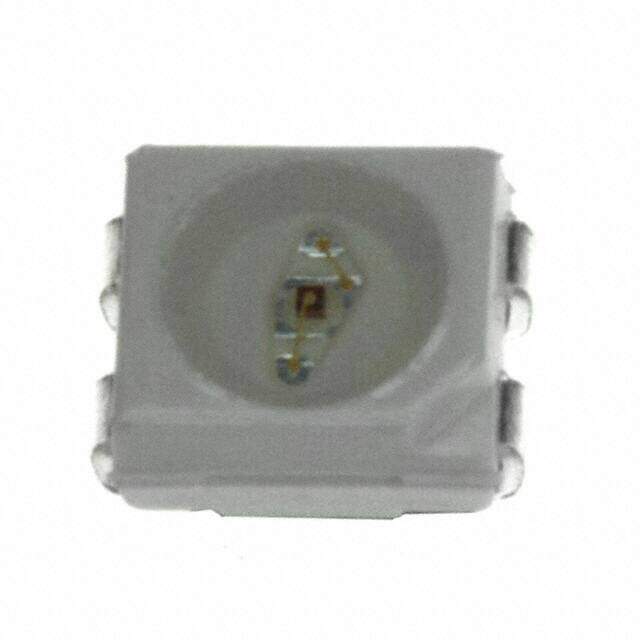

ASMC-PHB9-TW005
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
AVAGO TECHNOLOGIES ASMC-PHB9-TW005 LED, Red Orange, 617 nm, 2.8 V, 50 mA, 1 cd
PDF
/
Buying Options
Total Price: USD $3.01
Unit Price: USD $3.0077
≥1 USD $3.0077
≥10 USD $2.4681
≥100 USD $2.39115
≥500 USD $2.3142
≥1000 USD $2.23725
Inventory: 1889
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 2.1mm
Technical
Input Current 50mA
Wavelength - Dominant 617nm
Reverse Voltage 5V
Luminous Flux 4.3 lm
Lens Color Colorless
Wavelength - Peak 623nm
Lens Transparency Clear
Illumination Color Orange
Millicandela Rating 1463mcd
Luminous Intensity 1 cd
Lens Size 2.20mm Dia
Lens Style Round with Flat Top
Forward Current 50mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.8V
Power Dissipation 240mW
Configuration Standard
Number of Elements 1
Base Part Number ASMC-PHB9
Depth 3.2mm
Terminal Pitch 3mm
Number of Functions 1
Max Power Dissipation 240mW
Packing Method TAPE AND REEL 7"
Power Rating 240mW
Subcategory Visible LEDs
Additional Feature HIGH RELIABILITY
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Size / Dimension 3.20mm Lx2.80mm W
Series Envisium?
Published 2007
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 4-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
