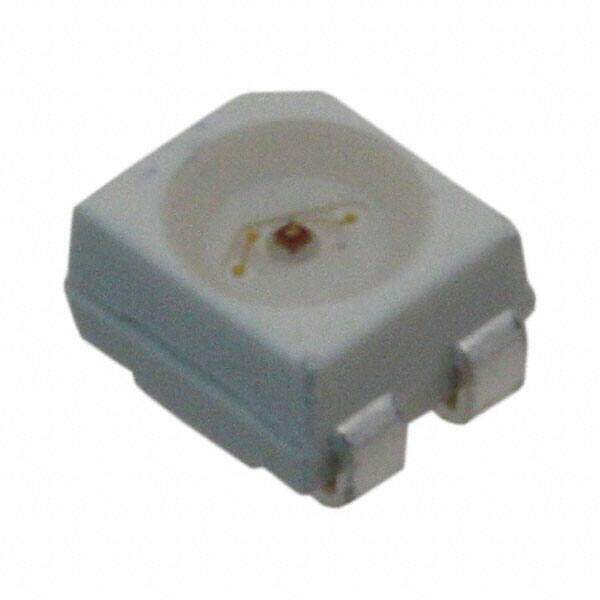

ASMC-PAB9-TV005
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
AVAGO TECHNOLOGIES ASMC-PAB9-TV005 LED, Amber, 592 nm, 2.8 V, 50 mA, 630 mcd
PDF
/
Inventory: 1118
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 2.1mm
Technical
Input Current 50mA
Wavelength - Dominant 592nm
Reverse Voltage 5V
Luminous Flux 2.6 lm
Lens Color Colorless
Wavelength - Peak 594nm
Lens Transparency Clear
Illumination Color Orange
Millicandela Rating 920mcd
Luminous Intensity 630 mcd
Lens Size 2.20mm Dia
Lens Style Round with Flat Top
Forward Current 50mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.8V
Power Dissipation 240mW
Configuration Standard
Number of Elements 1
Base Part Number ASMC-PAB9
Depth 3.2mm
Terminal Pitch 3mm
Number of Functions 1
Max Power Dissipation 240mW
Packing Method TAPE AND REEL 7"
Power Rating 240mW
Subcategory Visible LEDs
Additional Feature HIGH RELIABILITY
Color Amber
Min Operating Temperature -40°C
Max Operating Temperature 100°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Last Time Buy
Size / Dimension 3.20mm Lx2.80mm W
Series Envisium?
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 4-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 5 Weeks
