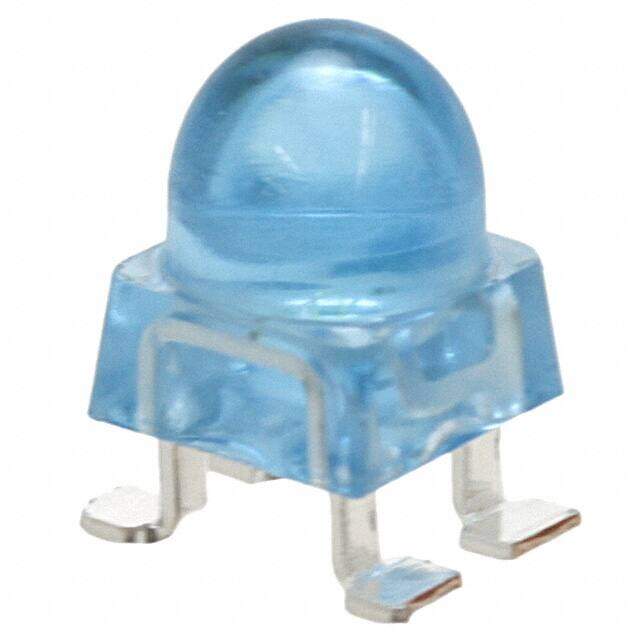

ALMD-CB3D-SU002
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, Gull Wing
Category Optoelectronics / LED Indication - Discrete
Description
BROADCOM LIMITED ALMD-CB3D-SU002 LED, Blue, SMD, 20 mA, 3.2 V, 470 nm
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.4784
≥1 USD $1.4784
≥10 USD $0.93632
≥100 USD $0.69256
≥500 USD $0.636416
Inventory: 1194
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 6.5mm
Technical
Wavelength - Dominant 470nm
Forward Voltage-Max 3.8V
Reverse Voltage 5V
Luminous Flux 15 mlm
Wavelength - Peak 464nm
Lens Transparency Clear
Millicandela Rating 3050mcd
Luminous Intensity 4.2 cd
Lens Style Round with Domed Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 3.2V
Power Dissipation 114mW
Configuration Standard
Number of Elements 1
Base Part Number ALMD-CB3D
Depth 4.2mm
Number of Functions 1
Max Power Dissipation 114mW
Power Rating 114mW
Subcategory Visible LEDs
Color Blue
Min Operating Temperature -40°C
Max Operating Temperature 85°C
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Active
Size / Dimension 4.20mm Lx4.20mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 4
Package / Case 4-SMD, Gull Wing
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
