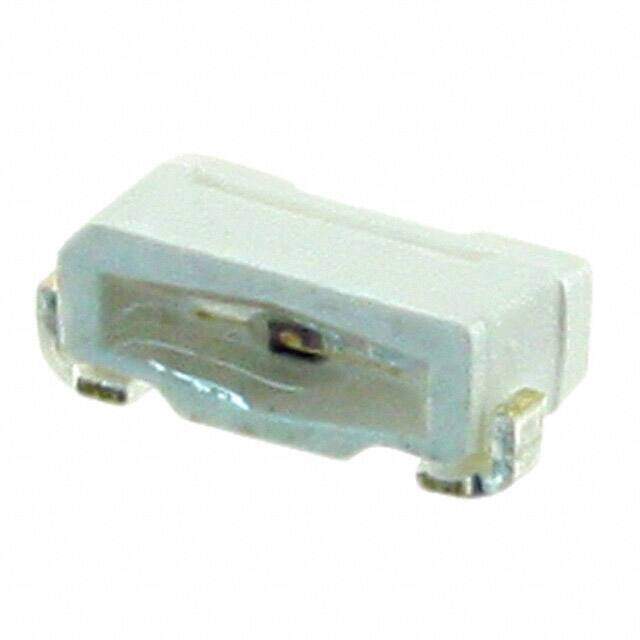

SMS1105YC
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $1.02
Unit Price: USD $1.0208
≥1 USD $1.0208
≥10 USD $0.64856
≥100 USD $0.480128
≥500 USD $0.441197
≥1000 USD $0.363343
Inventory: 8847
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, J-Lead
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2010
Size / Dimension 2.80mm Lx1.20mm W
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Yellow
Power Rating 100mW
Packing Method TR, 7 INCH
Number of Functions 1
Reach Compliance Code unknown
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 2.50mmx0.80mm
Luminous Intensity 250 mcd
Millicandela Rating 250mcd
Lens Transparency Clear
Lens Color Colorless
Wavelength 596 nm
Wavelength - Dominant 592nm
Number of LEDs 1
Dimensions
Height 800μm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
