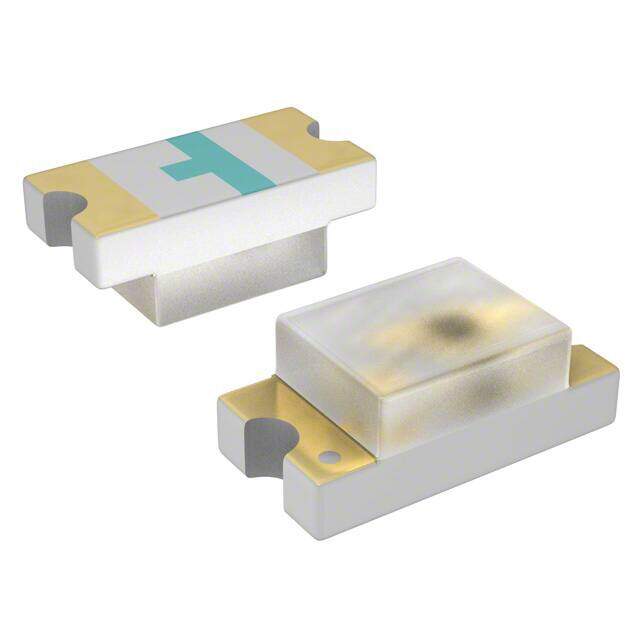

SM0603UYC
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.36432
≥100 USD $0.240768
≥500 USD $0.1859
≥1000 USD $0.167983
Inventory: 8815
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 600μm
Technical
Wavelength - Dominant 592nm
Forward Voltage-Max 2.6V
Lens Color Colorless
Wavelength - Peak 593nm
Lens Transparency Clear
Millicandela Rating 70mcd
Luminous Intensity 60 mcd
Lens Size 1.00mmx0.80mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Case Code (Imperial) 0603
Case Code (Metric) 1608
Power Rating 78mW
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Yellow
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Size / Dimension 1.60mm Lx0.80mm W
Published 2007
Packaging Tape & Reel (TR)
Physical
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
