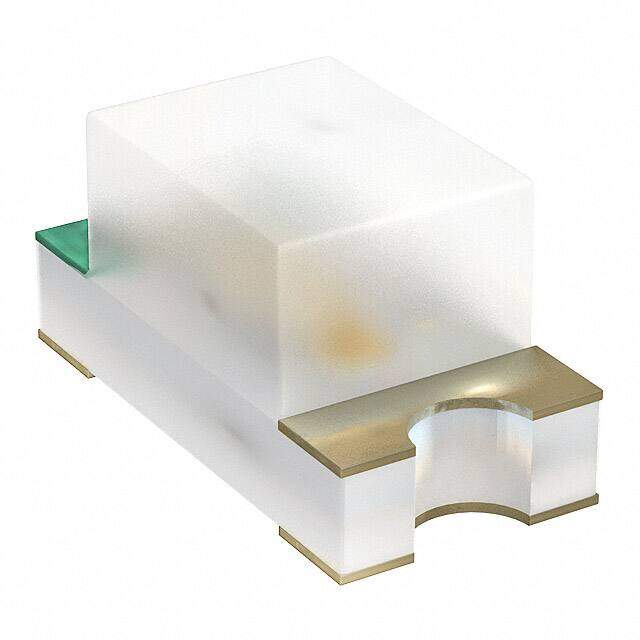

SM0603GCL
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5544
≥1 USD $0.5544
≥10 USD $0.36432
≥100 USD $0.240768
≥500 USD $0.1859
≥1000 USD $0.167983
Inventory: 1277
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 600μm
Technical
Wavelength - Dominant 574nm
Lens Color Colorless
Wavelength - Peak 575nm
Lens Transparency Clear
Millicandela Rating 3.6mcd
Luminous Intensity 3.6 mcd
Lens Size 1.00mmx0.80mm
Lens Style Rectangle with Flat Top
Forward Current 2mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 130°
Voltage - Forward (Vf) (Typ) 1.9V
Configuration Standard
Case Code (Imperial) 0603
Case Code (Metric) 1608
Reach Compliance Code unknown
Terminal Pitch 1.6mm
Number of Functions 1
Packing Method TAPE AND REEL
Power Rating 78mW
HTS Code 8541.40.20.00
Color Green
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Size / Dimension 1.60mm Lx0.80mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
