RoHS
RoHS compliant
RoHS compliantPackage Radial - 4 Leads
Category Optoelectronics / LED Indication - Discrete
Description

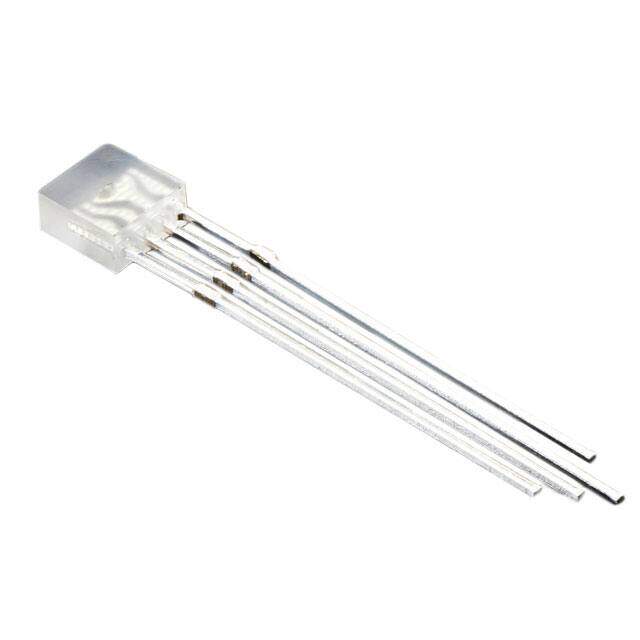

DIFFUSED RECT 5MM RGB LED 1=10
PDF
/
Buying Options
Total Price: USD $5.24
Unit Price: USD $5.236
≥1 USD $5.236
Inventory: 86
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial - 4 Leads
Technical
Size / Dimension 4.90mm Lx2.40mm W
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Red, Green, Blue (RGB)
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 3.2V Green 3.2V Blue
Viewing Angle 130°
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Flat Top
Lens Size 5.00mmx2.50mm
Millicandela Rating 350mcd Red, 800mcd Green, 250mcd Blue
Lens Transparency Diffused
Wavelength - Peak 632nm Red 520nm Green 468nm Blue
Lens Color White
Wavelength - Dominant 624nm Red 525nm Green 470nm Blue
Dimensions
Height (Max) 5.25mm
Compliance
RoHS Status ROHS3 Compliant
