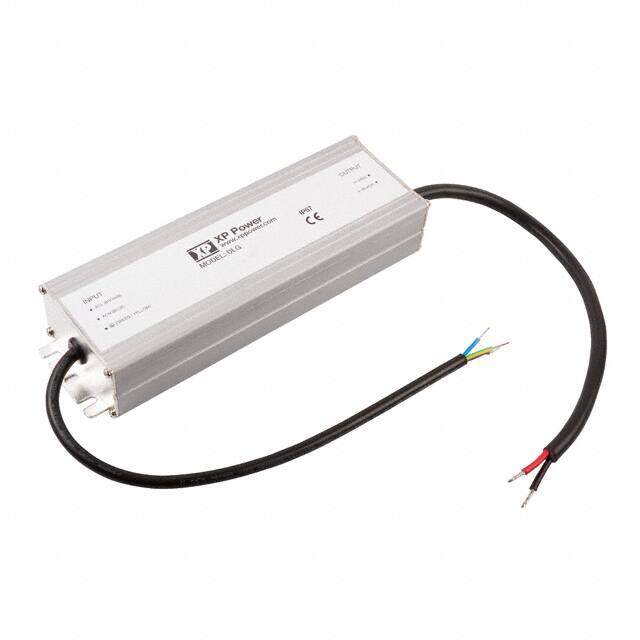

DLG100PS1400-A image
Favorite
DLG100PS1400-A image
Favorite

DLG100PS1400-A

XP Power
RoHS
RoHS RoHS compliant
Package 100
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description XP POWER DLG100PS1400-AAC/DC LED Power Supply, Constant Current, DLG HV Series, 90 VAC, 305 VAC, 100 W, 1.4 A, 71 V
PDF
/
Inventory: 3892
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case 100
Weight 1.7lbs 771.1g

Technical

Operating Temperature -30°C~70°C
Published 2013
Series DLG-HV (100W)
Size / Dimension 7.80Lx2.24W x 1.46 H 198.0mmx57.0mmx37.0mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Constant Current
Max Power Dissipation 100W
Termination Style Wire Leads
Number of Outputs 1
Approval Agency CE, UL
Efficiency 91%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 305VAC
Max Output Current 1.4A
Voltage - Input (Min) 90VAC
Output Current 1.4A
Output Power 100W
Max Output Voltage 71V
Voltage - Output 50V~71V
Topology AC DC Converter
Max Output Power 100W
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 305V

Dimensions

Height 37.084mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings IP67
