DLE60PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description

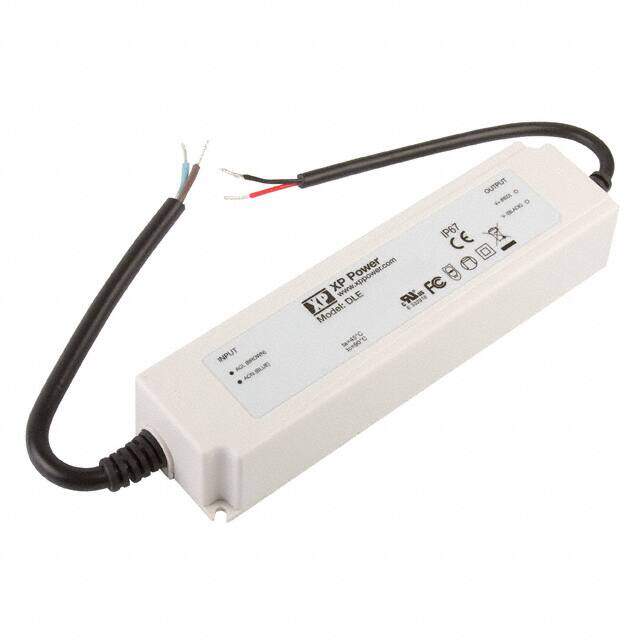

XP POWER DLE60PS24 AC/DC LED Power Supply, Constant Voltage & Current, DLE60 Series, 90 V, 305 V, 60 W, 2.5 A, 24 V
PDF
/
Buying Options
Total Price: USD $37.08
Unit Price: USD $37.0788
≥1 USD $37.0788
≥10 USD $34.98
≥100 USD $33
≥500 USD $31.13208
≥1000 USD $29.36988
≥3000 USD $27.70744
Inventory: 4133
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP67
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 32.258mm
Technical
Max Output Power 60W
Topology AC DC Converter
Voltage - Output 16V~24V
Max Output Voltage 24V
Output Power 60W
Output Current 2.5A
Voltage - Input (Min) 90VAC
Max Output Current 2.5A
Voltage - Input (Max) 305VAC
Voltage - Isolation 3.75kV
Efficiency 86%
Approval Agency CE, TUV, UL
Number of Outputs 1
Termination Style Wire Leads
Max Power Dissipation 60W
Type Constant Current, Voltage
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature OCP, OVP, SCP
Size / Dimension 6.73Lx1.78W x 1.27 H 164.1mmx45.3mmx32.5mm
Series DLE60 (60W)
Published 2013
Operating Temperature -20°C~50°C
Physical
Weight 0.9lb 408.23g
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 19 Weeks
