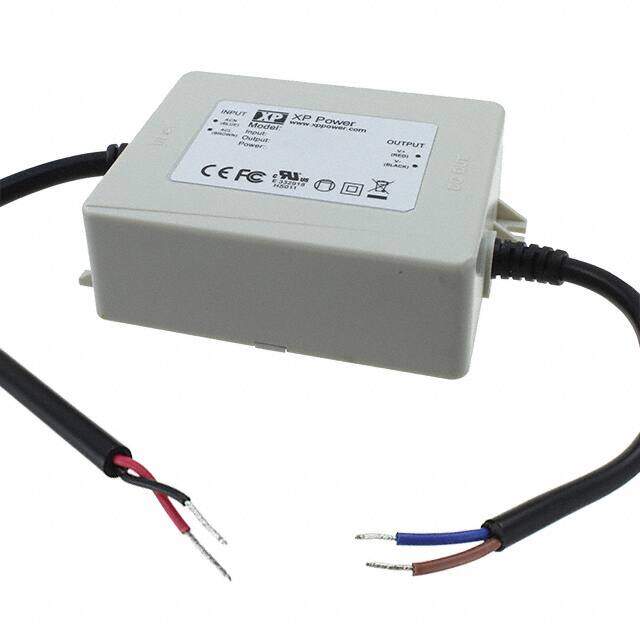

DLE25PS48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
XP POWER DLE25PS48 AC/DC LED Power Supply, Constant Voltage & Current, DLE25 Series, 90 V, 305 V, 24 W, 500 mA, 48 V
PDF
/
Buying Options
Total Price: USD $25.06
Unit Price: USD $25.05628
≥1 USD $25.05628
≥10 USD $23.638
≥100 USD $22.3
≥1000 USD $19.84692
Inventory: 1847
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Weight 0.77lb 349.27g
Technical
Operating Temperature -20°C~50°C
Published 2014
Series DLE25 (25W)
Size / Dimension 3.68Lx2.89W x 1.29 H 93.5mmx73.5mmx33.0mm
Feature OCP, OVP, SCP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Constant Current, Voltage
Max Power Dissipation 24W
Termination Style Wire Leads
Number of Outputs 1
Approval Agency CE, TUV, UL
Efficiency 80%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 305VAC
Max Output Current 500mA
Voltage - Input (Min) 90VAC
Output Current 500mA
Output Power 24W
Max Output Voltage 48V
Voltage - Output 34V~48V
Topology AC DC Converter
Max Output Power 24W
Dimensions
Height 32.766mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Ratings IP67
