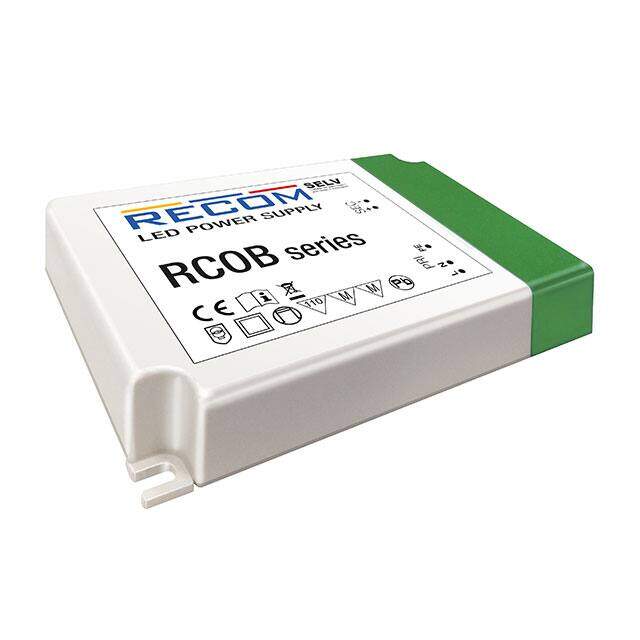

RCOB-650

Recom Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description LED DRIVER AC/DC CC 25-44V 650MA
PDF
/
Inventory: 2190
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings IP20
Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 22mm

Technical

Topology AC DC Converter
Voltage - Output 25V~44V
Max Output Voltage 44V
Output Power 28W
Output Current 650mA
Trim/Adjustable Output NO
Input Voltage-Nom 230V
Voltage - Input (Min) 198VAC
Max Output Current 650mA
Voltage - Input (Max) 264VAC
Voltage - Isolation 3kV
Efficiency 89%
Approval Agency CE
Number of Outputs 1
JESD-30 Code R-PXFM-X5
Termination Style Wire Leads
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Technology HYBRID
Max Power Dissipation 28W
Type Constant Current
ECCN Code EAR99
Termination Wire Leads
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP, OTP, SCP
Size / Dimension 4.17Lx2.64W x 0.87 H 106.0mmx67.0mmx22.0mm
Series LIGHTLINE RCOB (46W)
Operating Temperature -20°C~50°C

Physical

Weight 108g
Mounting Type Chassis Mount
Mount Chassis Mount
