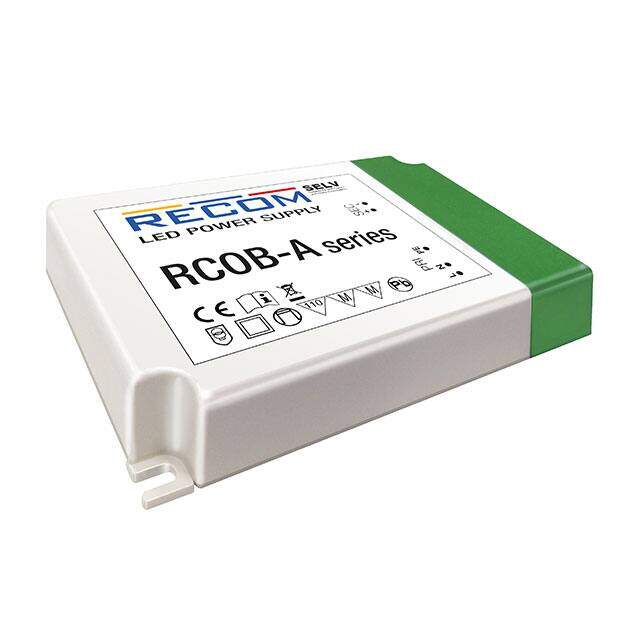

RCOB-1050A image
Favorite
RCOB-1050A image
Favorite

RCOB-1050A

Recom Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description RECOM POWER RCOB-1050A LED DRIVER, 1 O/P, CONSTANT CURRENT, 46W
PDF
/
Inventory: 3877
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings IP20
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Height 22mm

Technical

Dimming Analog
Max Output Power 46W
Topology AC DC Converter
Voltage - Output 6V~44V
Max Output Voltage 44V
Output Power 46W
Output Current 1.05A
Trim/Adjustable Output NO
Input Voltage-Nom 230V
Voltage - Input (Min) 198VAC
Max Output Current 1.05A
Voltage - Input (Max) 264VAC
Voltage - Isolation 3kV
Efficiency 83%
Approval Agency CE
Number of Outputs 1
JESD-30 Code R-PXMA-X7
Termination Style Wire Leads
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 1.05A
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Technology HYBRID
Max Power Dissipation 46W
Voltage - Rated 264V
Type Constant Current
ECCN Code EAR99
Termination Wire Leads
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP, OTP, SCP
Size / Dimension 4.79Lx3.07W x 0.87 H 121.7mmx78.0mmx22.0mm
Series LIGHTLINE RCOB-A (46W)
Operating Temperature -20°C~50°C

Physical

Weight 180g
Mounting Type Chassis Mount
Mount Chassis Mount, Surface Mount
