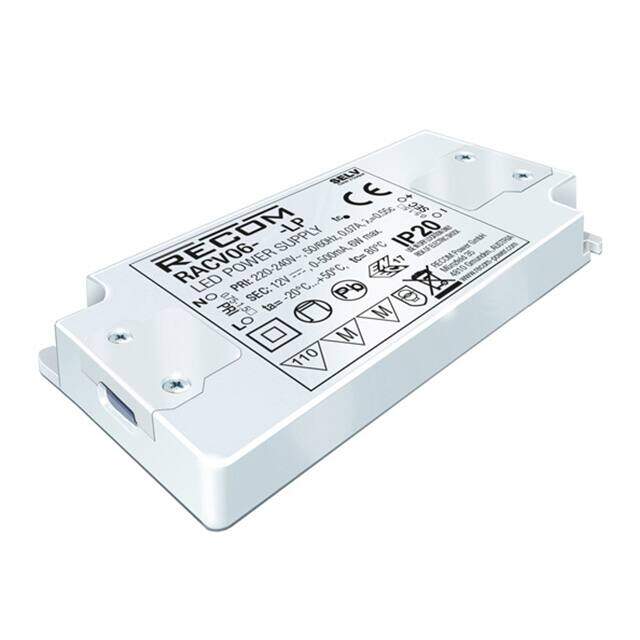

RACV06-24-LP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CV AC/DC 24V 250MA
PDF
/
Inventory: 3514
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 45g
Technical
Operating Temperature -20°C~50°C
Series LIGHTLINE RACV06-LP (6W)
Size / Dimension 3.86Lx1.81W x 0.43 H 98.0mmx46.0mmx11.0mm
Feature OTP, OVP, SCP
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Terminal Block
Type Constant Voltage
Max Power Dissipation 6W
Termination Style Terminal Block
Number of Outputs 1
Approval Agency CB, CE, ENEC
Efficiency 79%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 264VAC
Max Output Current 250mA
Voltage - Input (Min) 198VAC
Output Current 250mA
Output Power 6W
Max Output Voltage 24V
Voltage - Output 24V
Topology AC DC Converter
Dimensions
Height 11mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP20
