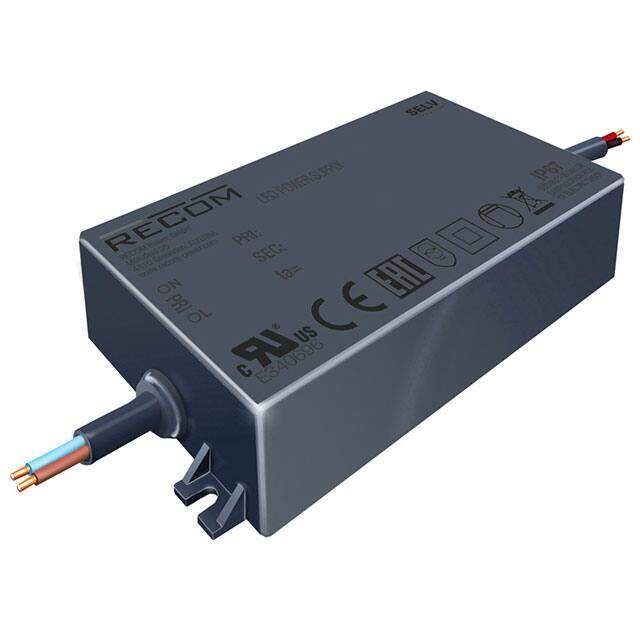

RACD60-700/IP67 image
Favorite
RACD60-700/IP67 image
Favorite

RACD60-700/IP67

Recom Power
RoHS
RoHS RoHS compliant
Package Module
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description LED DRIVER CC AC/DC 38-54V 700MA
PDF
/
Inventory: 7484
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Ratings IP67
Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 27.94mm

Technical

Max Output Power 60W
Current - Output 1 700mA
Topology AC DC Converter
Voltage - Output 38V~54V
Output Power 60W
Output Current 1.1A
Voltage - Input (Min) 90VAC
Voltage - Output 1 54V
Max Output Current 700mA
Voltage - Input (Max) 264VAC
Voltage - Isolation 3.75kV
Efficiency 89%
Approval Agency CE, cULus, EN
Number of Outputs 1
Termination Style Wire Leads
Depth 50.8mm
Max Power Dissipation 60W
Voltage - Rated 264V
Type Constant Current
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OCP, SCP
Size / Dimension 4.78Lx2.00W x 1.10 H 121.5mmx50.8mmx27.9mm
Series LIGHTLINE RACD60 (60W)
Operating Temperature -30°C~70°C

Physical

Weight 0.441lb 200.03g
Number of Pins 5
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount, Desktop
