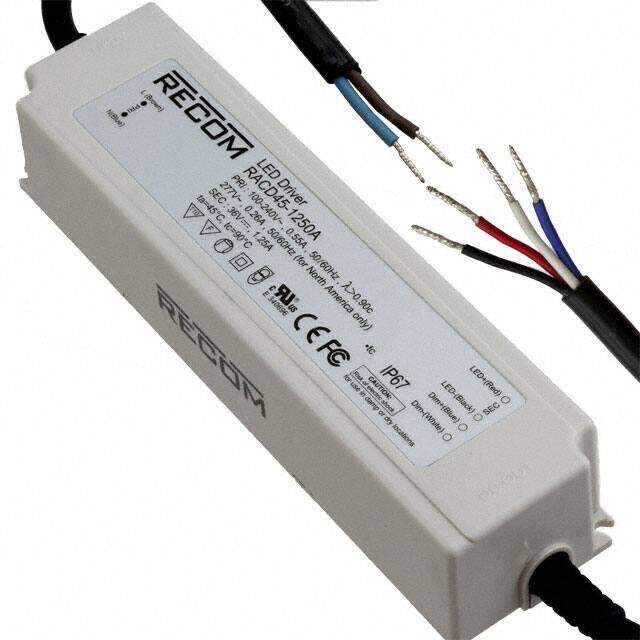

RACD45-1250A
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 24-36V 1.25A
PDF
/
Inventory: 9863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case 125
Weight 0.882lb 400.07g
Technical
Operating Temperature -30°C~50°C
Series LIGHTLINE RACD45-A (45W)
Size / Dimension 6.85Lx1.77W x 1.28 H 174.0mmx45.0mmx32.5mm
Feature OTP, OVP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Constant Current
Voltage - Rated 305V
Max Power Dissipation 45W
Termination Style Wire Leads
Number of Outputs 1
Approval Agency CE, UL
Efficiency 86%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 305VAC
Max Output Current 1.25A
Voltage - Output 1 36V
Voltage - Input (Min) 90VAC
Output Current 1.25A
Output Power 45W
Max Output Voltage 36V
Voltage - Output 24V~36V
Topology AC DC Converter
Current - Output 1 1.25A
Max Output Power 45W
Dimming Analog, PWM
Dimensions
Height 32.5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP67
