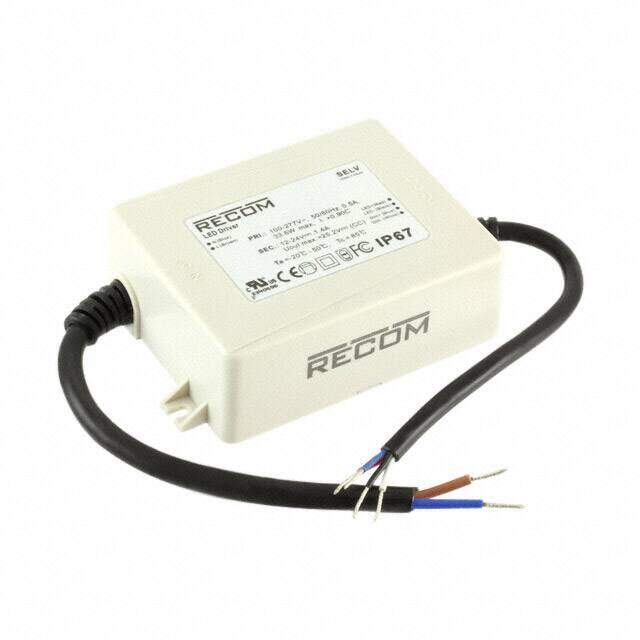

RACD35-1400A

Recom Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description LED Drivers Power Supplies 33.6W 12-24V 1400mA W/ PFC & DIMMING
PDF
/
Buying Options
Total Price: USD $39.94
Unit Price: USD $39.9432
≥1 USD $39.9432
Inventory: 47
Minimum: 1
-
+

Technical Details

Compliance

Ratings IP67
Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height 33mm

Technical

Dimming Analog, PWM
Max Output Power 33.6W
Current - Output 1 1.4A
Topology AC DC Converter
Voltage - Output 12V~24V
Max Output Voltage 24V
Output Power 33.6W
Output Current 1.4A
Voltage - Input (Min) 90VAC
Voltage - Output 1 24V
Max Output Current 1.4A
Voltage - Input (Max) 305VAC
Voltage - Isolation 3.75kV
Efficiency 81%
Approval Agency CE, cULus
Number of Outputs 1
Termination Style Wire Leads
Max Power Dissipation 35W
Voltage - Rated 305V
Type Constant Current
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OTP, OVP, SCP
Size / Dimension 4.33Lx2.89W x 1.30 H 110.0mmx73.5mmx33.0mm
Series LIGHTLINE RACD35-A (35W)
Operating Temperature -20°C~50°C

Physical

Weight 0.847lb 384.19g
Mounting Type Chassis Mount
Mount Chassis Mount
