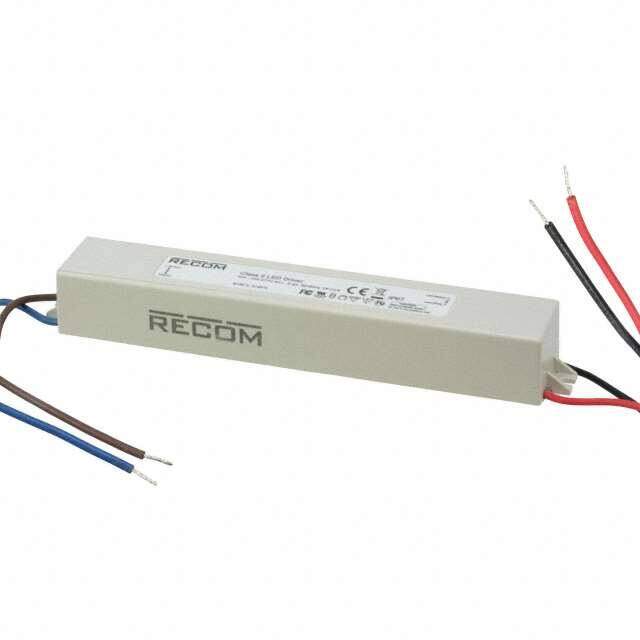

RACD25-700P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 21-36V 700MA
PDF
/
Inventory: 4764
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP65
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 25mm
Technical
Max Output Power 25W
Current - Output 1 700mA
Topology AC DC Converter
Voltage - Output 21V~36V
Max Output Voltage 36V
Output Power 25W
Output Current 700mA
Nominal Supply Current 400mA
Min Supply Voltage 90V
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Input (Min) 90VAC
Voltage - Output 1 36V
Max Output Current 700mA
Lead Length 150mm
Voltage - Input (Max) 295VAC
Voltage - Isolation 3.75kV
Efficiency 85%
Approval Agency CE, cULus, EN
Number of Outputs 1
Termination Style Wire Leads
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Technology HYBRID
Max Power Dissipation 25W
Type Constant Current
ECCN Code EAR99
Termination Wire Leads
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature OTP, OVP, SCP
Size / Dimension 7.48Lx1.20W x 0.98 H 190.0mmx30.5mmx25.0mm
Series LIGHTLINE RACD25 (25W)
Operating Temperature -20°C~50°C
Physical
Weight 0.485lb 219.99g
Number of Pins 4
Mounting Type Chassis Mount
Mount Chassis Mount, Screw
