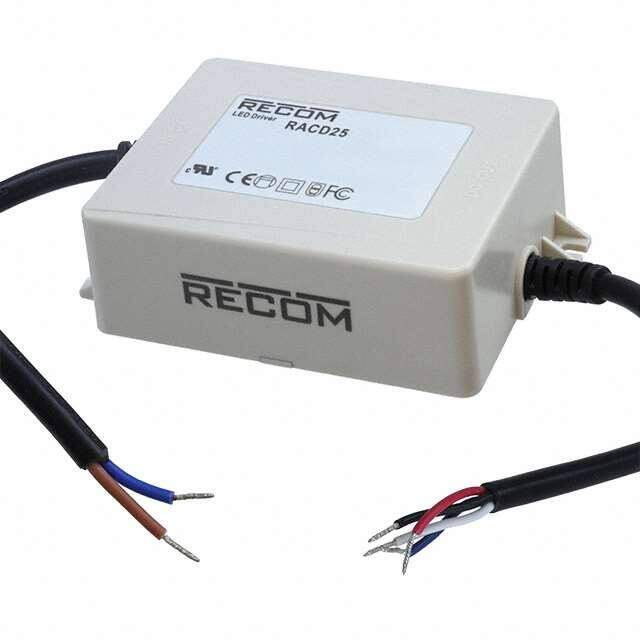

RACD25-500A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED Drivers Power Supplies 24W 36-48VDC 500mA W/ PFC & DIMMING
PDF
/
Inventory: 9012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 0.847lb 384.19g
Technical
Operating Temperature -20°C~50°C
Series LIGHTLINE RACD25-A (25W)
Size / Dimension 4.33Lx2.89W x 1.30 H 110.0mmx73.5mmx33.0mm
Feature OTP, OVP, SCP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Wire Leads
Type Constant Current
Max Operating Temperature 50°C
Min Operating Temperature -20°C
Power (Watts) 25W
Voltage - Rated 295V
Max Power Dissipation 25W
Termination Style Wire Leads
Number of Outputs 1
Approval Agency CE, cULus
Efficiency 81%
Voltage - Isolation 3.75kV
Voltage - Input (Max) 305VAC
Max Output Current 500mA
Voltage - Output 1 48V
Voltage - Input (Min) 90VAC
Current - Output (Max) 500mA
Output Current 500mA
Output Power 24W
Voltage - Output 36V~48V
Topology AC DC Converter
Current - Output 1 500mA
Max Output Power 25W
Dimming Analog, PWM
Dimensions
Height 33.02mm
Length 110mm
Width 73.5mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings IP67
