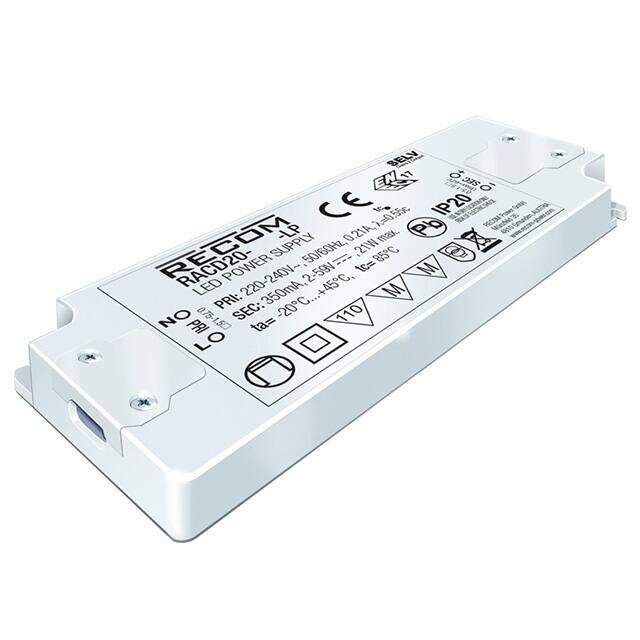

RACD20-700-LP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / LED Drivers
Description
LED DRIVER CC AC/DC 2-31V 700MA
PDF
/
Buying Options
Total Price: USD $10.21
Unit Price: USD $10.213049
≥1 USD $10.213049
≥200 USD $3.953142
≥500 USD $3.813975
≥1000 USD $3.744391
Inventory: 1446
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP20
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 13mm
Technical
Topology AC DC Converter
Voltage - Output 2V~31V
Max Output Voltage 31V
Output Power 22W
Output Current 700mA
Voltage - Input (Min) 198VAC
Max Output Current 700mA
Voltage - Input (Max) 264VAC
Voltage - Isolation 3.75kV
Efficiency 85%
Approval Agency CB, CE, ENEC
Number of Outputs 1
Termination Style Terminal Block
Max Power Dissipation 20W
Type Constant Current
Termination Terminal Block
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OTP, OVP, SCP
Size / Dimension 5.04Lx1.97W x 0.51 H 128.0mmx50.0mmx13.0mm
Series LIGHTLINE RACD20-LP (20W)
Operating Temperature -20°C~45°C
Physical
Weight 75g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 8 Weeks
Alternative Model
